TSH 1212 Series

Catalog

DC DC CONVERTER 12V 2W

Part	Voltage - Output 1	Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 2
Traco Power TSH 1212S	12 V	Isolated Module	1000 V	10.8 V	0.5 "	0.36 in	9.2 mm	0.37 in	12.7 mm	9.3 mm	Surface Mount	14-SMD Module 5 Leads	13.2 V	SCP	85 °C	-40 C	ITE (Commercial)	2 W	165 mA	1

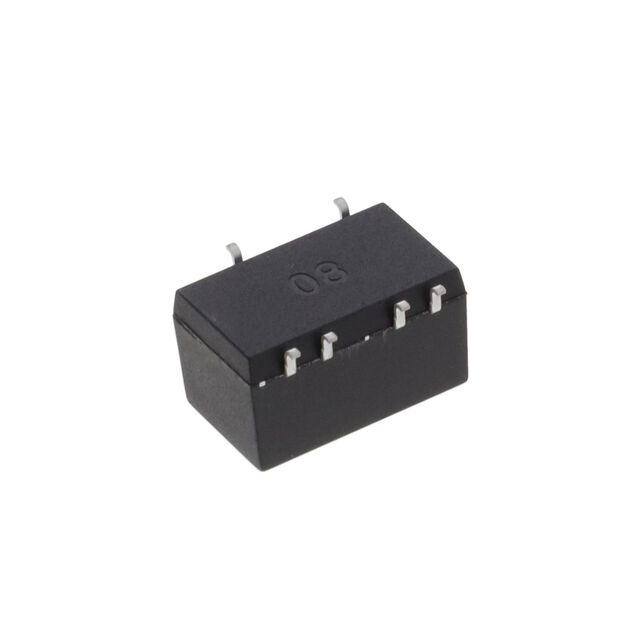

Traco Power TSH 1212D	12 V	Isolated Module	1000 V	10.8 V	0.6 "	0.36 in	9.2 mm	0.37 in	15.3 mm	9.3 mm	Surface Mount	18-SMD Module 6 Leads	13.2 V	SCP	85 °C	-40 C	ITE (Commercial)	1.9 W	80 mA	2	-12 V
