3LP01S Series

Small Signal MOSFET -30V -100mA 10.4 Ohm Single P-Channel MCP3

Catalog

Small Signal MOSFET -30V -100mA 10.4 Ohm Single P-Channel MCP3

Part	Rds On (Max) @ Id, Vgs	Package / Case	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Vgs (Max)	Supplier Device Package	Drain to Source Voltage (Vdss)	Technology	Operating Temperature	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	FET Type	Power Dissipation (Max) [Max]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds
ON Semiconductor 3LP01SS-TL-EX	10.4 Ohm	SC-81	4 V	1.5 V	10 V	3-SSFP	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	150 mW	Surface Mount	7.5 pF
ON Semiconductor 3LP01C-TB-E	10.4 Ohm	SC-59 SOT-23-3 TO-236-3	4 V	1.5 V	10 V	SC-59-3/CP3	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	250 mW	Surface Mount	7.5 pF

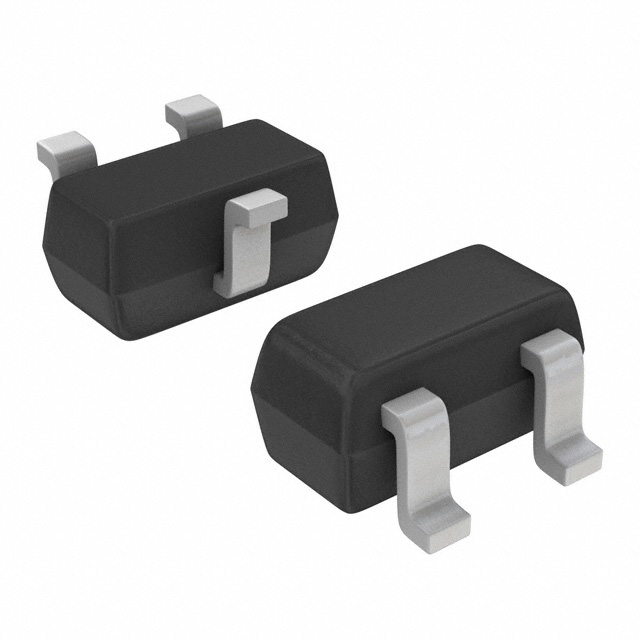

ON Semiconductor 3LP01SS-TL-H	10.4 Ohm	SC-75 SOT-416	4 V	1.5 V	10 V	SMCP	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	150 mW	Surface Mount	7.5 pF
ON Semiconductor 3LP01S-K-TL-E		SC-59 SOT-23-3 TO-236-3				SMCP			150 °C					Surface Mount
ON Semiconductor 3LP01M-TL-E	10.4 Ohm	SC-70 SOT-323	4 V	1.5 V	10 V	MCP	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	150 mW	Surface Mount	7.5 pF
ON Semiconductor 3LP01S-TL-E	10.4 Ohm	SC-75 SOT-416	4 V	1.5 V	10 V	SMCP	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	150 mW	Surface Mount	7.5 pF
ON Semiconductor 3LP01SS-TL-E	10.4 Ohm	SC-81	4 V	1.5 V	10 V	3-SSFP	30 V	MOSFET (Metal Oxide)	150 °C	100 mA	1.43 nC	P-Channel	150 mW	Surface Mount	7.5 pF

Small Signal MOSFET -30V -100mA 10.4 Ohm Single P-Channel MCP3

• Low ON-resistance

• Ultrahigh speed switching

• 2.5 V drive

3LP01M is P-Channel Small Signal MOSFET -30V -100mA 10.4 OhmsSingle MCP for general purpose switching applications.
