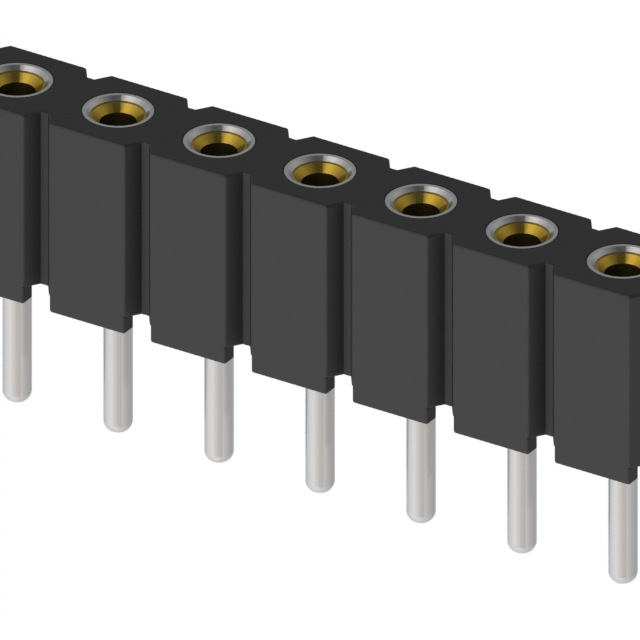

801-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RCPT 14POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Contact Material | Contact Length - Post | Contact Length - Post | Contact Type | Connector Type | Contact Finish Thickness - Mating | Number of Rows | Insulation Height | Insulation Height | Insulation Color | Mounting Type | Material Flammability Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Current Rating (Amps) | Number of Positions | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.118 in | 3 mm | Female Socket | Receptacle | Flash | 1 | 0.276 in | 7 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 14 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 48 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 21 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 22 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 7 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.118 in | 3 mm | Female Socket | Receptacle | Flash | 1 | 0.276 in | 7 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 22 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 58 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 7 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.118 in | 3 mm | Female Socket | Receptacle | Flash | 1 | 0.276 in | 7 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold | |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 0.125 in | 3.18 mm | Female Socket | Receptacle | Flash | 1 | 0.165 in | 4.2 mm | Black | Through Hole | UL94 V-0 | All | -55 C | 125 °C | Tin | 4.5 A | 49 | Solder | 0.1 " | 2.54 mm | Push-Pull | Gold |
