STGFW35 Series

Catalog

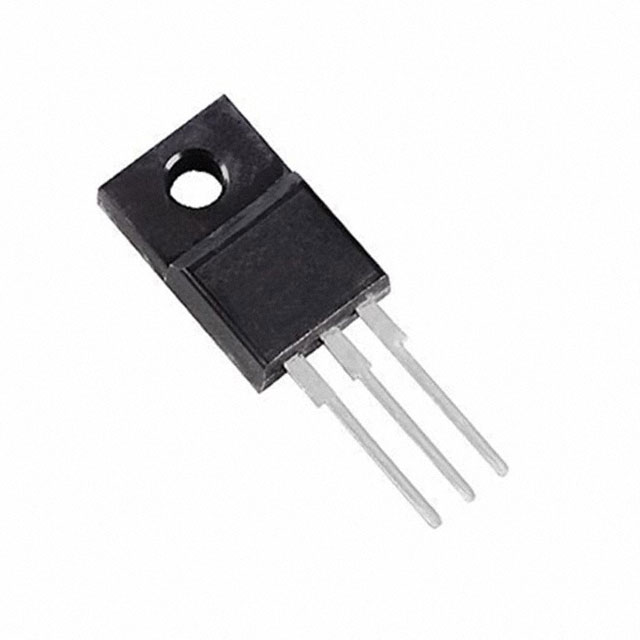

IGBT 600V 36A 88W TO3PF

Part	Current - Collector Pulsed (Icm)	Supplier Device Package	Switching Energy	Package / Case	Test Condition	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Power - Max [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Gate Charge
STMicroelectronics STGFW35HF60W	150 A	TO-3PF	185 µJ 290 µJ	TO-3P-3 Full Pack	10 Ohm 15 V 20 A 400 V	150 °C	-55 °C	2.5 V	30 ns 175 ns	88 W	Through Hole	36 A	600 V	140 nC
