RM15TRH Series

Catalog

CONN RCPT FMALE 4 POS

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Positions	Orientation	Shell Size - Insert [custom]	Mounting Feature	Fastening Type	Voltage Rating	Insert Material	Contact Material	Color	Shielding	Contact Finish - Mating	Shell Finish	Material Flammability Rating	Shell Material	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

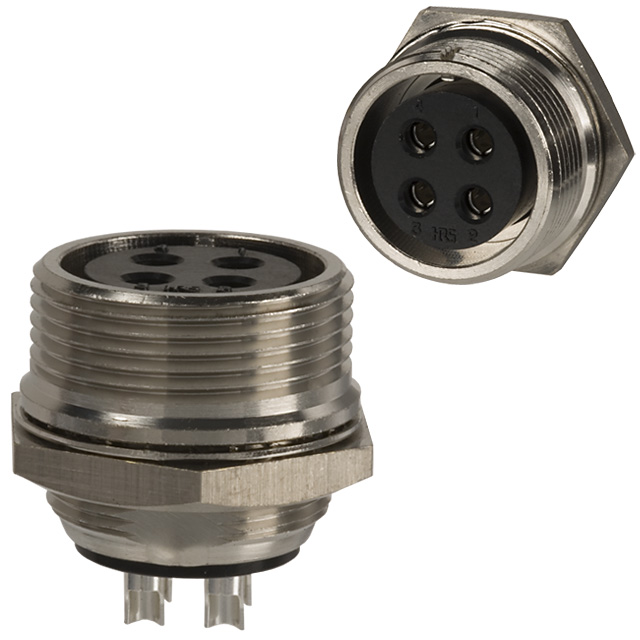

Hirose Electric Co Ltd RM15TRH-4SA(71)	10 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	4	Keyed	15	Bulkhead - Rear Side Nut	Threaded	500 VAC 700 VDC
Hirose Electric Co Ltd RM15TRH-4SA	10 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	4	Keyed	15	Bulkhead - Rear Side Nut	Threaded	500 VAC 700 VDC
Hirose Electric Co Ltd RM15TRH-10S(81)	5 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	10	Keyed	15	Bulkhead - Rear Side Nut	Threaded	350 VAC 490 VDC	Diallyl Phthalate (DAP)	Copper Alloy	Silver	Unshielded	Silver	Nickel	UL94 V-0	Zinc Alloy	Metal

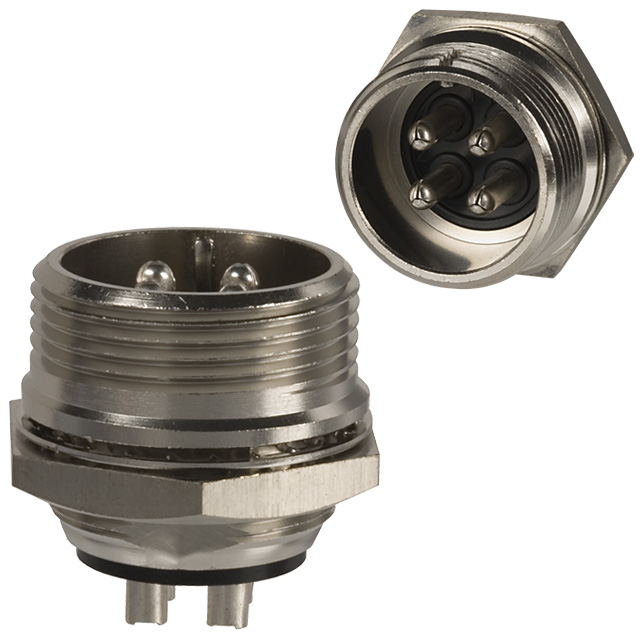

Hirose Electric Co Ltd RM15TRH-4PA	10 A	85 °C	-25 °C	Receptacle Male Pins	Panel Mount	4	Keyed	15	Bulkhead - Rear Side Nut	Threaded	500 VAC 700 VDC
Hirose Electric Co Ltd RM15TRH-4SA(81)	10 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	4	Keyed	15	Bulkhead - Rear Side Nut	Threaded		Polyphenylene Sulfide (PPS)	Copper Alloy		Unshielded	Silver				Metal

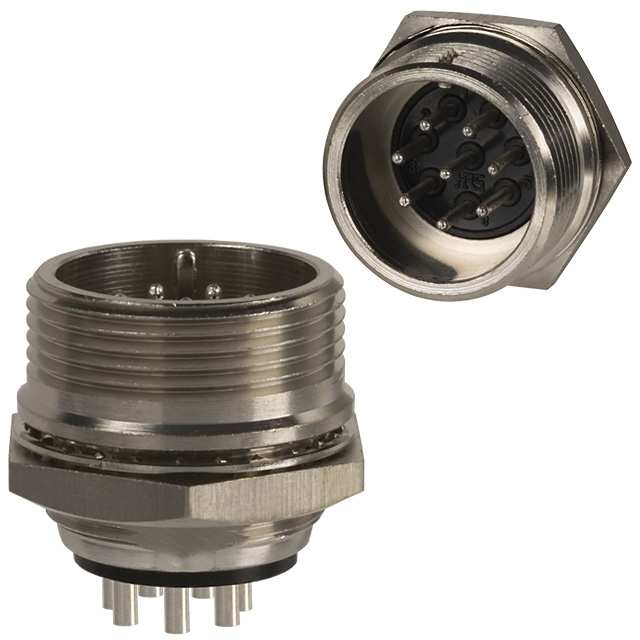

Hirose Electric Co Ltd RM15TRH-8PH(71)	5 A	85 °C	-25 °C	Receptacle Male Pins	Panel Mount	8	Keyed	15	Bulkhead - Rear Side Nut	Threaded	500 VAC 700 VDC	Diallyl Phthalate (DAP)	Copper Alloy	Silver		Silver	Nickel	UL94 V-0	Brass	Metal	78.7 µin	2 µm

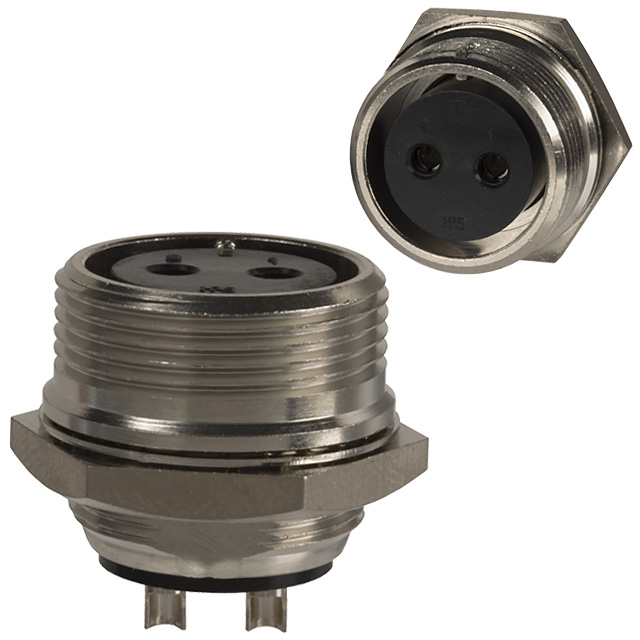

Hirose Electric Co Ltd RM15TRH-2SA	10 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	2	Keyed	15	Bulkhead - Rear Side Nut	Threaded	600 VAC 840 VDC
Hirose Electric Co Ltd RM15TRH-10S(71)	5 A	85 °C	-25 °C	Receptacle Female Sockets	Panel Mount	10	Keyed	15	Bulkhead - Rear Side Nut	Threaded	350 VAC 490 VDC	Diallyl Phthalate (DAP)	Copper Alloy	Silver		Silver	Nickel	UL94 V-0	Brass	Metal	196.9 µin	5 µm
