MIC33030 Series

8MHz 400mA Internal Inductor Buck Regulator Power Module w/Hyper Light Load™

Catalog

8MHz 400mA Internal Inductor Buck Regulator Power Module w/Hyper Light Load™

Part	Output Configuration	Mounting Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output	Frequency - Switching	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage - Input (Max) [Max]	Package / Case	Topology	Function	Output Type	Voltage - Output (Max) [Max]

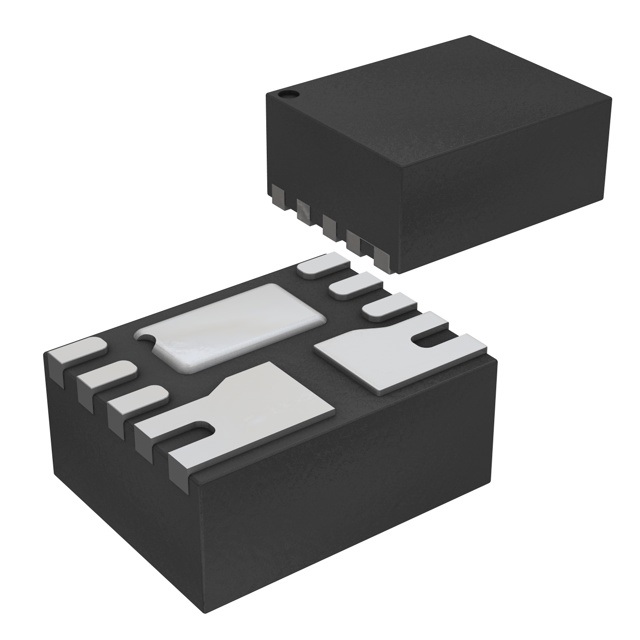

Microchip Technology MIC33030-JYHJ-TR	Positive	Surface Mount	1.81 mOhm	-40 °C	125 ¯C	2.7 V	1	400 mA	8 MHz	2.5 V	10-MLF® (2.5x2)	5.5 V	10-MLF® 10-PowerTFDFN	Buck	Step-Down
Microchip Technology MIC33030-4YHJ-TR	Positive	Surface Mount	1.81 mOhm	-40 °C	125 ¯C	2.7 V	1	400 mA	8 MHz	1.2 V	10-MLF® (2.5x2)	5.5 V	10-MLF® 10-PowerTFDFN	Buck	Step-Down
Microchip Technology MIC33030-AYHJ-TR	Positive	Surface Mount		-40 °C	125 ¯C	2.7 V	1	400 mA	8 MHz	0.7 V	10-MLF® (2.5x2)	5.5 V	10-MLF® 10-PowerTFDFN	Buck	Step-Down	Adjustable	3.6 V
Microchip Technology MIC33030-GYHJ-T5	Positive	Surface Mount	1.81 mOhm	-40 °C	125 ¯C	2.7 V	1	400 mA	8 MHz	1.8 V	10-MLF® (2.5x2)	5.5 V	10-MLF® 10-PowerTFDFN	Buck	Step-Down

Catalog

8MHz 400mA Internal Inductor Buck Regulator Power Module w/Hyper Light Load™

Key Features

• + Simplifies design to two external capacitors

• + Input voltage: 2.7V to 5.5V

• + Output voltage accuracy of ±2.5% over temperature

• + 400mA output current

• + Efficiency up to 75% at 1mA

• + 21µA typical quiescent current

• + Up to 8MHz PWM operation in continuous mode

• + Ultra fast transient response

• + 30mVpp ripple in HyperLight Load® mode

• + 7mV output voltage ripple in full PWM mode

• + Fully-integrated MOSFET switches

• + 0.01µA shutdown current

• + Thermal shutdown and current-limit protection

• + Fixed and adjustable output voltage options available (0.7V to 3.6V)

• + 2.5mm x 2.0mm 10-Lead

• + -40°C to +125°C junction temperature range

Description

The MIC33030 is a high-efficiency, 8MHz, 400mA synchronous buck regulator with an internal inductor and HyperLight Load® mode. HyperLight Load® provides very high efficiency at light loads and ultra-fast transient response that is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is the very low output ripple voltage throughout the entire load range with the use of small output capacitors. The tiny 2.0mm x 2.5mm package saves precious board space with an integrated inductor and requires only two external capacitors. The MIC33030 is designed for use with miniscule output capacitors as small as 2.2µF. This gives the MIC33030 the ease of use of an LDO with the efficiency of a HyperLight Load® DC converter. The MIC33030 achieves efficiency in HyperLight Load® mode as high as 75% at 1mA, with a very-low quiescent current of 21µA. At higher loads, the MIC33030 provides a constant switching frequency up to 8MHz. The MIC33030 is available in a 10-pin 2.5mm x 2.0mm package with an operating junction temperature range of -40°C to +125°C.
