DF12B(3.0) Series

Catalog

CONN HDR 40POS SMD GOLD

Part	Pitch	Pitch	Contact Finish	Mounting Type	Mated Stacking Heights	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows [custom]	Height Above Board	Height Above Board [z]	Number of Positions	Height Above Board [z]
Hirose Electric Co Ltd DF12B(3.0)-40DP-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Header Outer Shroud Contacts	2	2.3 mm	0.091 "	40

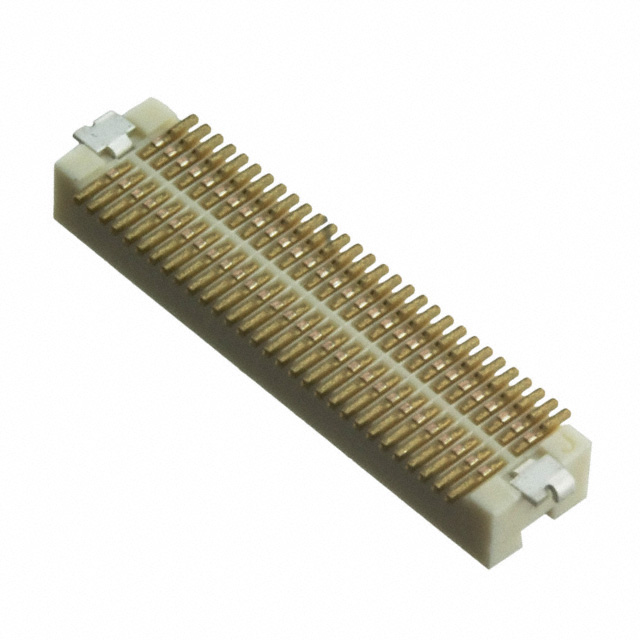

Hirose Electric Co Ltd DF12B(3.0)-60DP-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Header Outer Shroud Contacts	2	2.3 mm	0.091 "	60
Hirose Electric Co Ltd DF12B(3.0)-60DS-0.5V	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention			Receptacle Center Strip Contacts	2		0.087 in	60	2.2 mm
Hirose Electric Co Ltd DF12B(3.0)-30DS-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Receptacle Center Strip Contacts	2		0.087 in	30	2.2 mm
Hirose Electric Co Ltd DF12B(3.0)-32DP-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Header Outer Shroud Contacts	2	2.3 mm	0.091 "

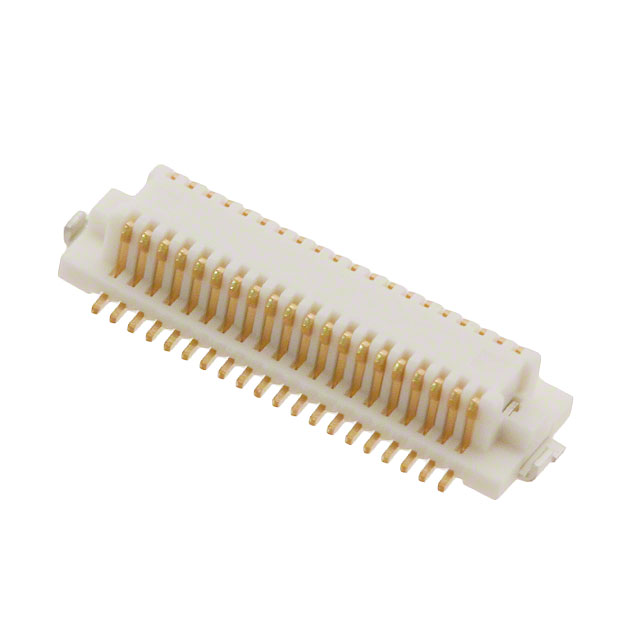

Hirose Electric Co Ltd DF12B(3.0)-40DS-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Receptacle Center Strip Contacts	2		0.087 in	40	2.2 mm

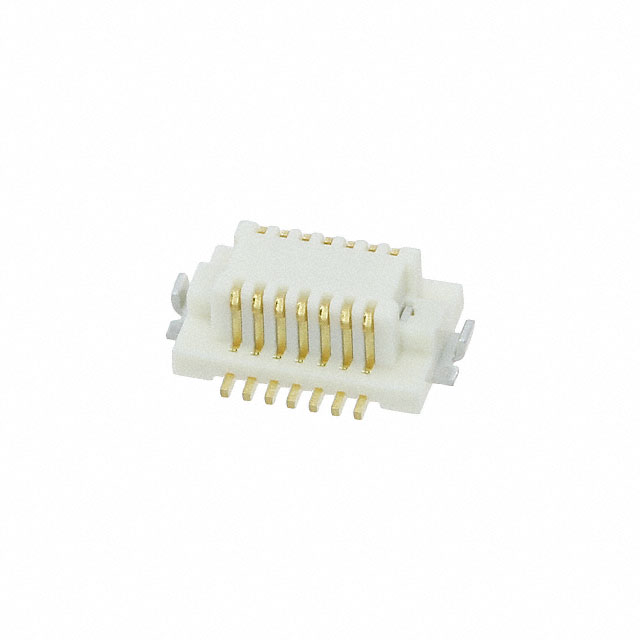

Hirose Electric Co Ltd DF12B(3.0)-14DS-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Receptacle Center Strip Contacts	2		0.087 in	14	2.2 mm
Hirose Electric Co Ltd DF12B(3.0)-10DP-0.5V(86)	0.02 "	0.5 mm	Gold	Surface Mount	3 mm	Solder Retention	0.203 çm	8 µin	Header Outer Shroud Contacts	2	2.3 mm	0.091 "	10
Hirose Electric Co Ltd DF12B(3.0)-14DP-0.5V(65)
Hirose Electric Co Ltd DF12B(3.0)-32DP-0.5V(48)
