DF22 Series

Catalog

CONN HEADER R/A 2POS 7.92MM

Part	Termination	Insulation Color	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Style	Mounting Type	Features	Contact Material	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Contact Type	Fastening Type	Material Flammability Rating	Insulation Material	Number of Positions	Insulation Height	Insulation Height	Shrouding	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Finish - Post	Note	Contact Termination	Pitch	Pitch	Color	Mated Stacking Heights	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

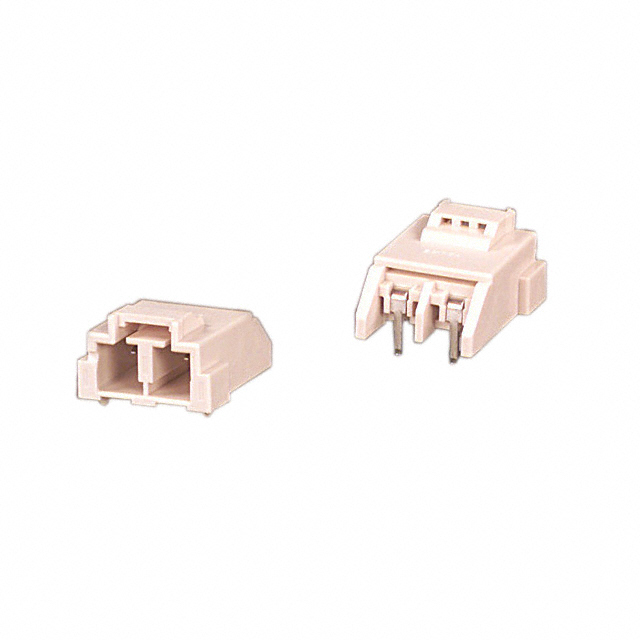

Hirose Electric Co Ltd DF22-2P-7.92DS	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Right Angle Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header	Tin-Lead	25 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	2	12.2 mm	0.48 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square
Hirose Electric Co Ltd DF22-2P-7.92DS(36)	Solder		All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Right Angle Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header		25 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	2	12.2 mm	0.48 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square

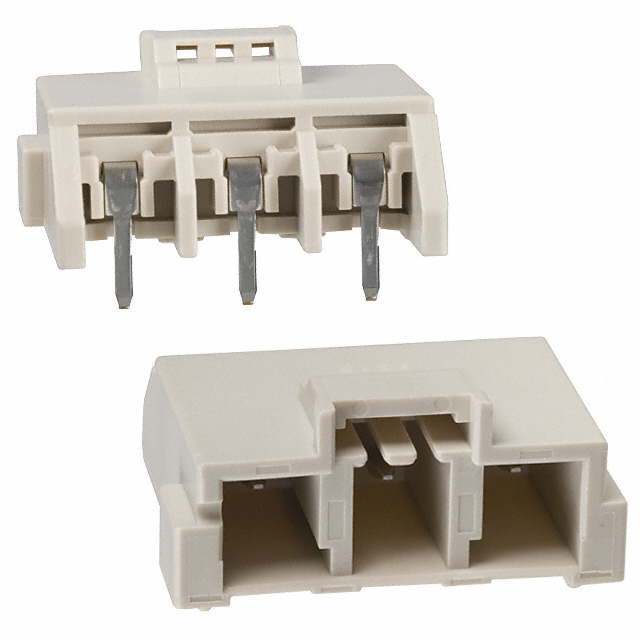

Hirose Electric Co Ltd DF22-3P-7.92DS(75)	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Right Angle Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header		25 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)		12.2 mm	0.48 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square	Tin
Hirose Electric Co Ltd DF22-3S-7.92C(28)										Free Hanging (In-Line)	Polarizing Key				Receptacle			Female Socket	Latch Lock		Nylon Polyamide (PA)					1	85 °C	-55 C			Contacts Not Included	Crimp	0.312 in	7.92 mm	White

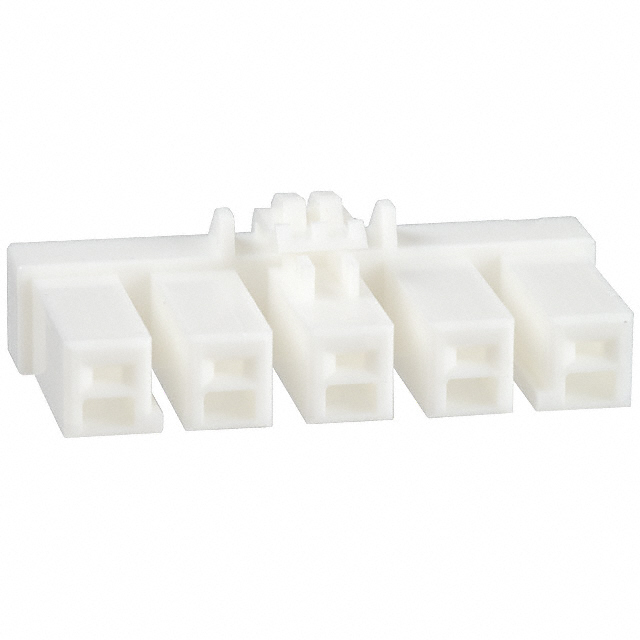

Hirose Electric Co Ltd DF22-5S-7.92C										Free Hanging (In-Line)	Polarizing Key				Receptacle			Female Socket	Latch Lock			5				1					Contacts Not Included	Crimp	0.312 in	7.92 mm	White

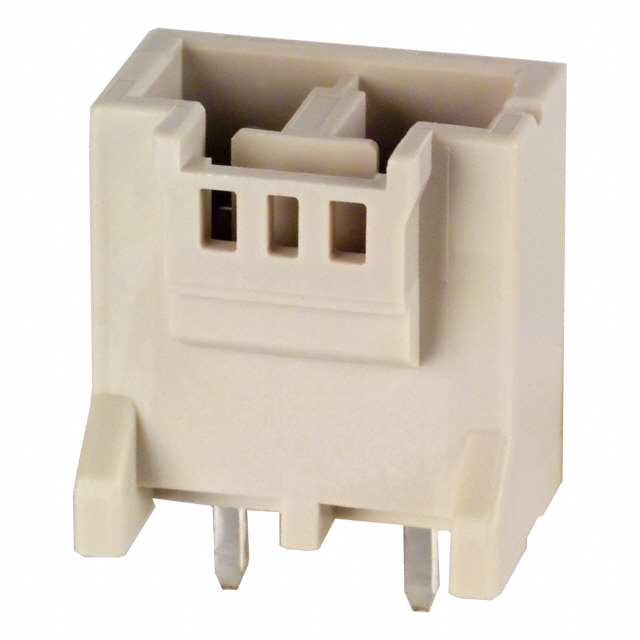

Hirose Electric Co Ltd DF22-2P-7.92DSA(05)	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header	Tin-Copper	25 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	2	18.1 mm	0.713 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square							25.7 mm 28.7 mm	39.4 µin	1 µm

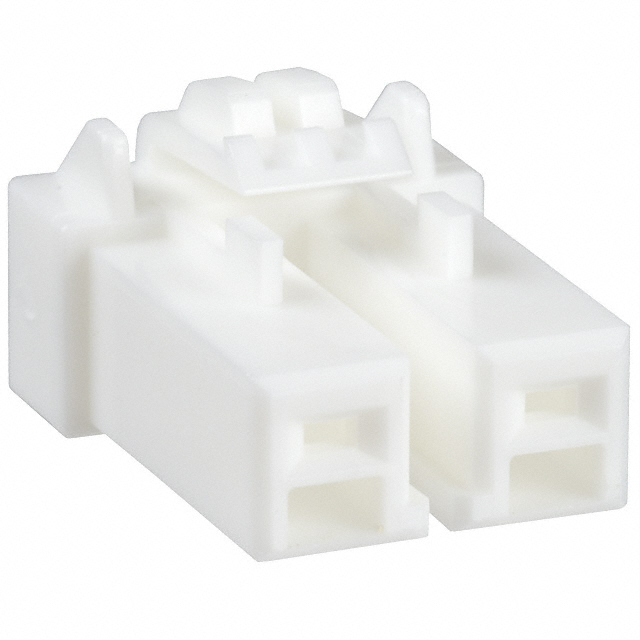

Hirose Electric Co Ltd DF22-2S-7.92C										Free Hanging (In-Line)	Polarizing Key				Receptacle			Female Socket	Latch Lock			2				1					Contacts Not Included	Crimp	0.312 in	7.92 mm	White

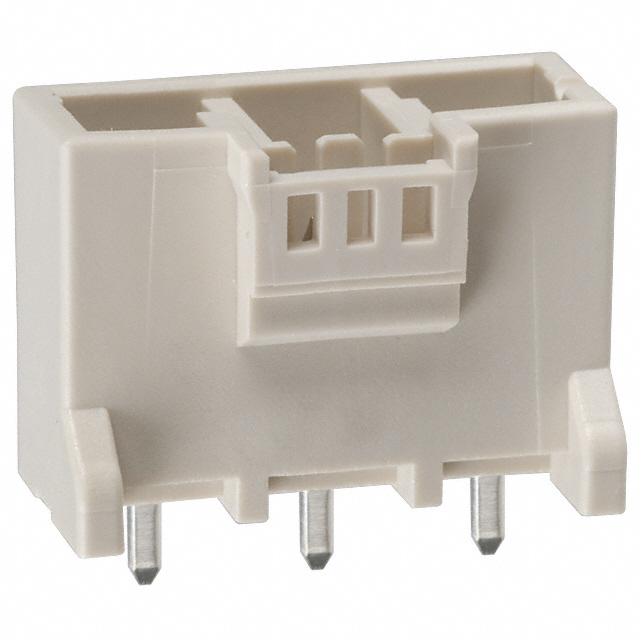

Hirose Electric Co Ltd DF22-3P-7.92DSA(35)	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header		25 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)		18.1 mm	0.713 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square	Tin						25.7 mm 28.7 mm

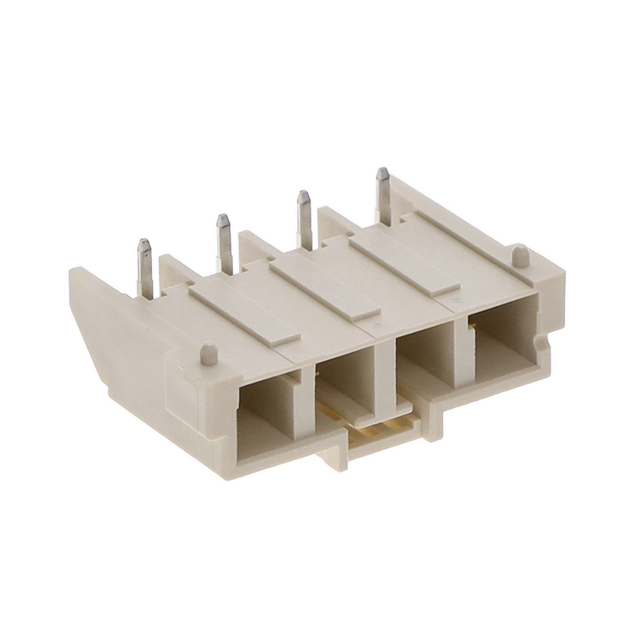

Hirose Electric Co Ltd DF22-4P-7.92DS(53)	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Right Angle Through Hole	Board Guide	Copper Alloy	0.312 in	7.92 mm	Header	Gold	22 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	4	12.2 mm	0.48 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square	Gold

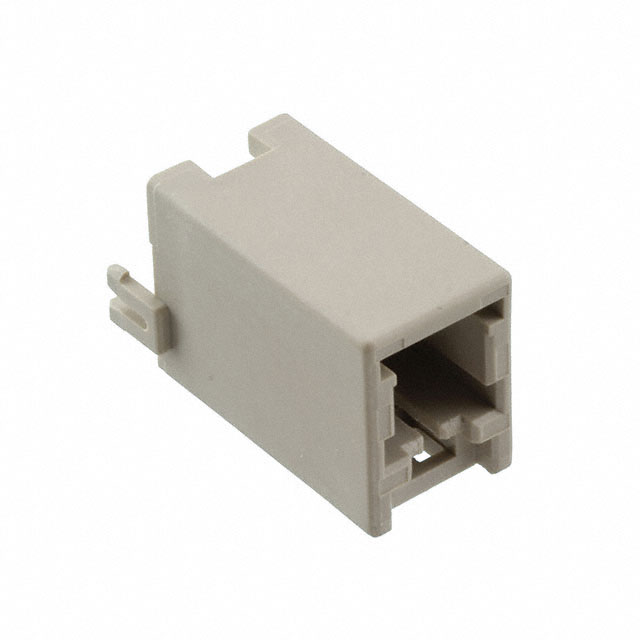

Hirose Electric Co Ltd DF22-1P-7.92DSA(25)	Solder	Beige	All	9 mm	0.354 in	3.7 mm	0.146 "	1000 VDC	Board to Cable/Wire	Through Hole	Board Lock	Copper Alloy			Header		30 A	Male Pin	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	1	18.1 mm	0.713 in	Shrouded - 4 Wall	1	85 °C	-35 °C	Square	Tin						25.7 mm 28.7 mm
