HR11 Series

Catalog

CONN PLUG MALE 6P SILV SLDR CUP

Part	Current Rating (Amps)	Applications	Mounting Type	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size - Insert	Shell Finish	Insert Material [custom]	Insert Material [custom]	Color	Material Flammability Rating	Shell Material	Voltage Rating	Contact Material	Features	Backshell Material, Plating	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Connector Type	Fastening Type	Contact Finish - Mating	Orientation	Mounting Feature	Termination

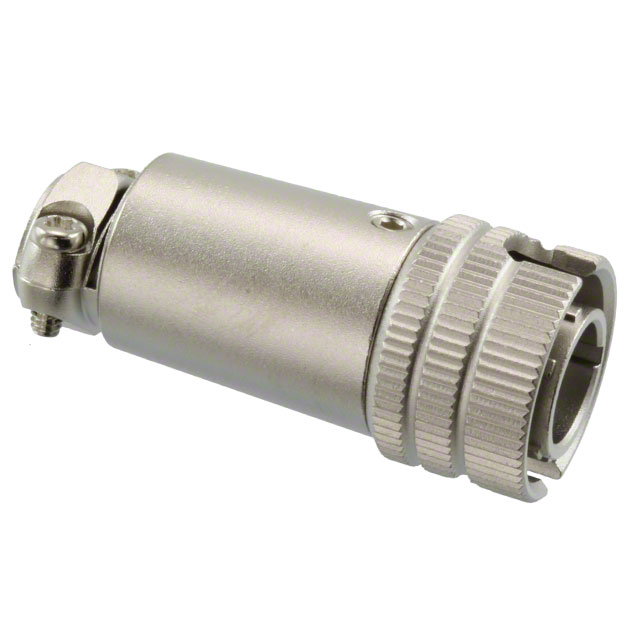

Hirose Electric Co Ltd HR11-9BP-6P(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Brass	Backshell Cable Clamp Coupling Nut	Brass Nickel	Metal	118.1 µin	3 µm	Unshielded	Plug Male Pins	Bayonet Lock	Silver	Keyed

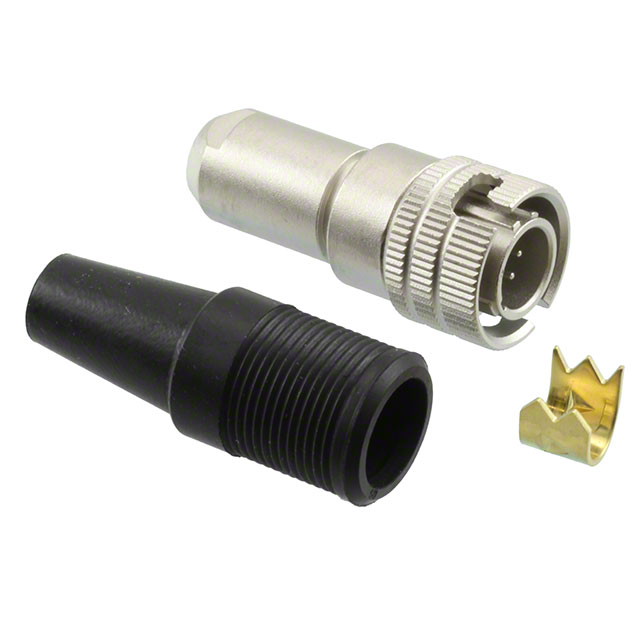

Hirose Electric Co Ltd HR11-9BPB-6P(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Brass	Backshell Clamp Coupling Nut Strain Relief	Brass Nickel	Metal	118.1 µin	3 µm	Unshielded	Plug Male Pins	Bayonet Lock	Silver	Keyed
Hirose Electric Co Ltd HR11-9BJB-6P(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver		Zinc Alloy	100 VAC 140 VDC	Brass	Backshell Strain Relief		Metal			Unshielded	Jack Male Pins	Bayonet Lock	Silver	Keyed
Hirose Electric Co Ltd HR11-9BJB-4S(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	4	9	Nickel	Nylon	Polyamide (PA)	Silver		Zinc Alloy	100 VAC 140 VDC	Phosphor Bronze	Backshell Strain Relief		Metal			Unshielded	Jack Female Sockets	Bayonet Lock	Silver	Keyed

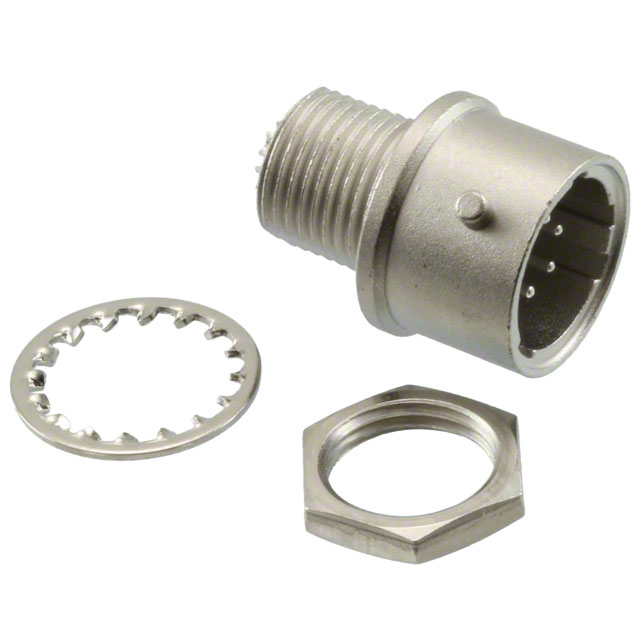

Hirose Electric Co Ltd HR11-9BR-6P(73)	2 A	Communication Systems Instrumentation	Panel Mount					-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Brass			Metal			Unshielded	Receptacle Male Pins	Bayonet Lock	Silver	Keyed	Bulkhead - Rear Side Nut

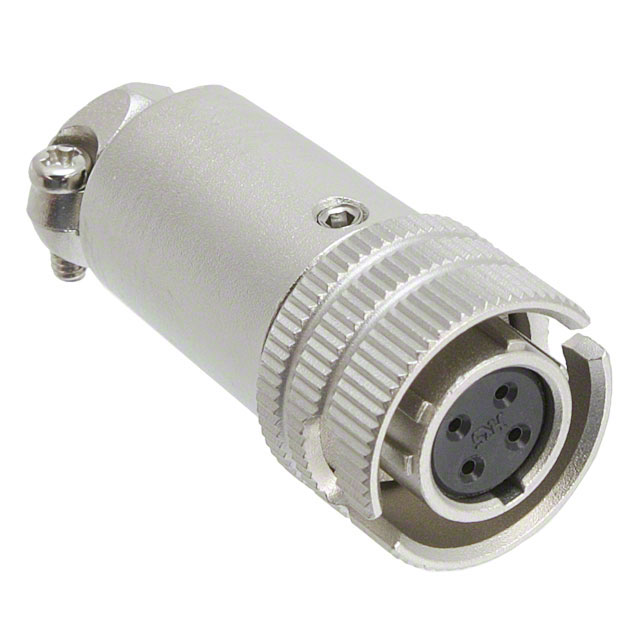

Hirose Electric Co Ltd HR11-9BP-4S(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	4	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Phosphor Bronze	Backshell Cable Clamp Coupling Nut	Brass Nickel	Metal	118.1 µin	3 µm	Unshielded	Plug Female Sockets	Bayonet Lock	Silver	Keyed
Hirose Electric Co Ltd HR11-9BP-4P(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)					-10 °C	60 °C	4	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Brass and Zinc Die Cast	100 VAC 140 VDC	Brass	Cable Clamp		Metal			Unshielded	Plug Male Pins	Bayonet Lock	Silver	Keyed		Solder
Hirose Electric Co Ltd HR11-9BP-6S(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Phosphor Bronze	Backshell Cable Clamp Coupling Nut	Brass Nickel	Metal	118.1 µin	3 µm	Unshielded	Plug Female Sockets	Bayonet Lock	Silver	Keyed
Hirose Electric Co Ltd HR11-9BPB-4P(73)	2 A	Communication Systems Instrumentation	Free Hanging (In-Line)	0.177 in	5.5 mm	0.217 in	4.5 mm	-10 °C	60 °C	4	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Brass	Backshell Clamp Coupling Nut Strain Relief	Brass Nickel	Metal	118.1 µin	3 µm	Unshielded	Plug Male Pins	Bayonet Lock	Silver	Keyed
Hirose Electric Co Ltd HR11-9BR-6S(73)	2 A	Communication Systems Instrumentation	Panel Mount					-10 °C	60 °C	6	9	Nickel	Nylon	Polyamide (PA)	Silver	UL94 V-0	Zinc Alloy	100 VAC 140 VDC	Phosphor Bronze			Metal	118.1 µin	3 µm	Unshielded	Receptacle Female Sockets	Bayonet Lock	Silver	Keyed	Bulkhead - Rear Side Nut
