NP100N055 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

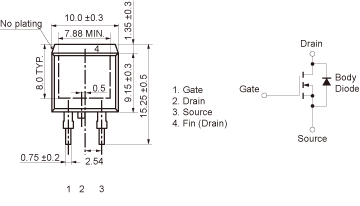

TRANS MOSFET N-CH 55V 100A 3-PIN(2+TAB) TO-263 T/R
| Part | Drain to Source Voltage (Vdss) | Power Dissipation (Max) | Power Dissipation (Max) | Input Capacitance (Ciss) (Max) @ Vds | Rds On (Max) @ Id, Vgs [Max] | Supplier Device Package | Package / Case | Current - Continuous Drain (Id) @ 25°C | Operating Temperature | FET Type | Technology | Drive Voltage (Max Rds On, Min Rds On) | Vgs(th) (Max) @ Id | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 55 V | 1.8 W | 176 W | 7350 pF | 3.25 mOhm | TO-263 (D2PAK) | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 100 A | 175 °C | N-Channel | MOSFET (Metal Oxide) | 10 V | 4 V | 20 V | 120 nC | Surface Mount |
