ADRF5020 Series

Catalog

RF SWITCH, SILICON, SPDT, 100 MHZ TO 30 GHZ, -2.75 V TO 5.4 V SUPPLY, -40 TO 85 °C, LGA-EP-20

Part	Test Frequency	Circuit	Voltage - Supply	Mounting Type	RF Type	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Package / Case	Supplier Device Package	IIP3	P1dB	Frequency Range [Min]	Frequency Range [Max]	Isolation	Insertion Loss	Type	Frequency [Max]	Frequency [Min]	Utilized IC / Part	Contents
Analog Devices ADRF5020BCCZN	20 GHz	SPDT	5.5 V	Surface Mount	VSAT	Absorptive	85 °C	-40 °C	50 Ohms	20-WFLGA Exposed Pad	20-LGA (3x3)	52 dBm	28 dBm	100 MHz	30 GHz	65 dB	2 dB

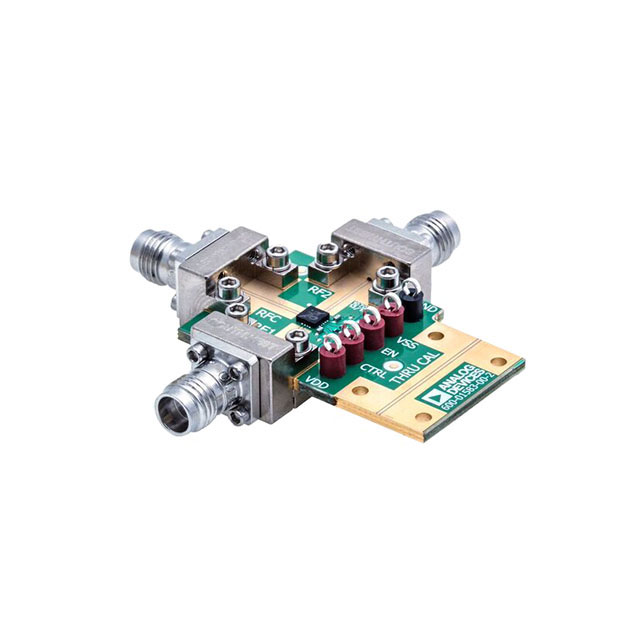

Analog Devices ADRF5020-EVALZ																		Switch SPDT	30 GHz	100 MHz	ADRF5020	Board(s)
