DF24A Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER SMD 50POS 0.9MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Contact Type | Insulation Color | Contact Shape | Mounting Type | Connector Type | Contact Finish - Post | Material Flammability Rating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Material | Termination | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Positions | Shrouding | Number of Rows [custom] | Fastening Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

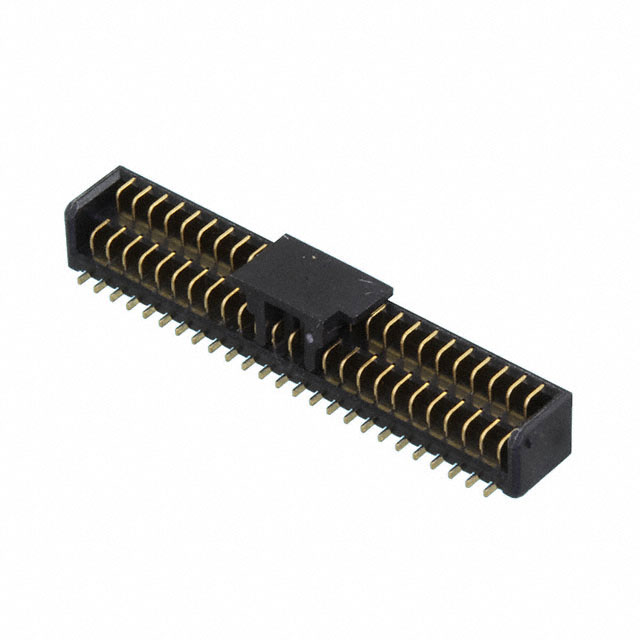

 Hirose Electric Co Ltd | Flash | 3.9 µin | 0.099 µm | Board to Cable/Wire | Male Blade | Black | Rectangular | Surface Mount | Header | Gold | UL94 V-0 | Gold | 0.035 " | 0.9 mm | Phosphor Bronze | Solder | Nylon Polyamide (PA) | 85 °C | -35 °C | 0.134 in | 3.4 mm | All | 50 | Shrouded - 4 Wall | 2 | Push-Pull | Pick and Place | 80 VDC |

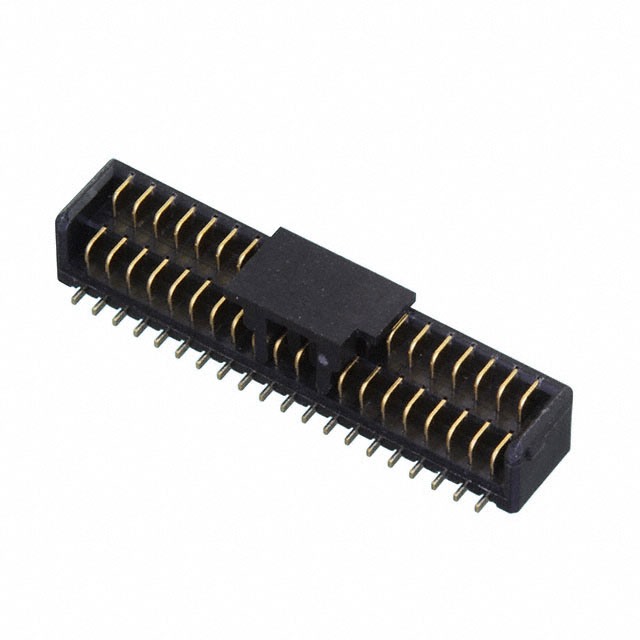

 Hirose Electric Co Ltd | Flash | 3.9 µin | 0.099 µm | Board to Cable/Wire | Male Blade | Black | Rectangular | Surface Mount | Header | Gold | UL94 V-0 | Gold | 0.035 " | 0.9 mm | Phosphor Bronze | Solder | Nylon Polyamide (PA) | 85 °C | -35 °C | 0.134 in | 3.4 mm | All | 40 | Shrouded - 4 Wall | 2 | Push-Pull | Pick and Place | 80 VDC |
