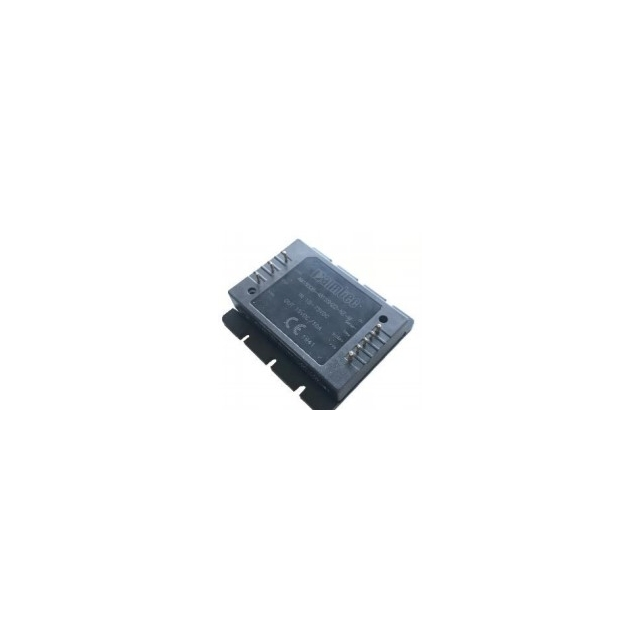

AM150QB Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 15V 150W
| Part | Applications | Supplier Device Package | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage - Input (Min) [Min] | Package / Case | Power (Watts) | Voltage - Isolation | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Output 1 | Type | Current - Output (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | ITE (Commercial) | Quarter Brick | 1 | 40.2 mm | 1.09 " | 27.7 mm | 2.43 in | 1.58 " | 61.8 mm | Through Hole | 18 V | Quarter Brick | 150 W | 2250 VDC | 75 V | 85 °C | -40 C | Heat Sink Remote On/Off | 15 V | Isolated Module | 10 A | 89 % |
