GaAs pHEMT MMIC Medium Power Amplifier, 5 - 18 GHz
Key Features
• Gain: 19 dB
• Saturated Power: +21 dBm @ 21% PAE
• Output IP3: +30 dBm
• Single Supply: +5V @ 114 mA
• 50 Ohm Matched Input/Output
• RoHS Compliant 3x3 mm SMT package
Description
AI

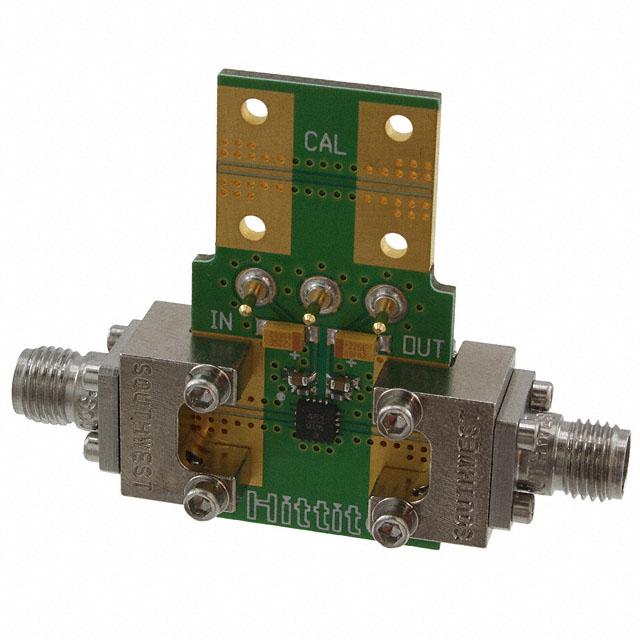

The HMC451LP3(E) is an efficient GaAs pHEMT MMIC Medium Power Amplifier housed in a leadless RoHS compliant SMT package. Operating between 5 and 18 GHz, the amplifier provides 18 dB of gain, +21 dBm of saturated power and 18% PAE from a single +5V supply. This 50 Ω matched amplifier does not require any external components and the RF I/O’s are DC blocked, making it an ideal linear gain block or LO driver for HMC mixers. The HMC451LP3(E) eliminates the need for wire bonding, and allows the use of surface mount manufacturing techniques.ApplicationsMicrowave Radio & VSATMilitary & SpaceTest Equipment & SensorsFiber OpticsLO Driver for HMC Mixers
