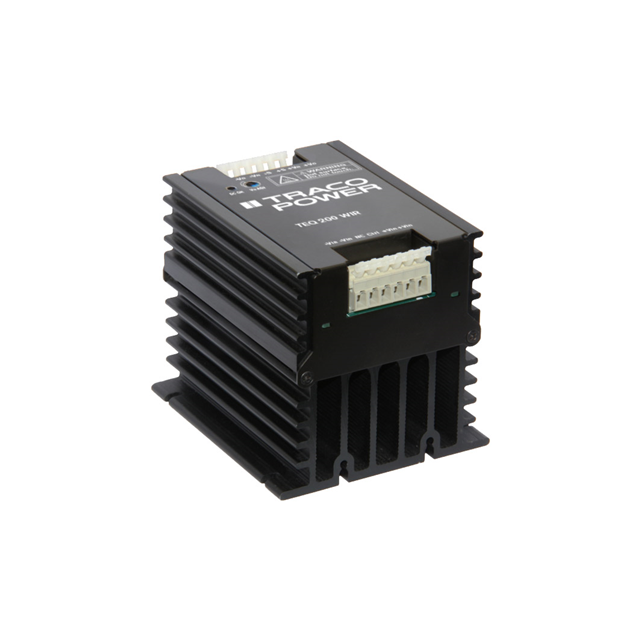

TEQ 200WIR Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT PRODUCT TYPE: DC/DC; PACKAGE STYLE: HIGH POWER BLOCK; OUTPUT POWER (W): 200; INPUT VOLTAGE: 18-75 VDC; OUTPUT 1 (VDC): 12; OUTPUT 2 (VDC): N/A; OUTPUT 3 (VDC): N/A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Mounting Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output 1 | Efficiency | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Type | Size / Dimension | Size / Dimension | Approval Agency | Applications | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | -40 C | 105 ░C | 1 | Chassis Mount | 2250 VDC | 19 V | 12 V | 89 % | 75 V | 18 A | Enclosed | 87.6 mm 88.9 mm 103.1 mm | 3.45 " 3.5 " 4.06 " | CB cULus cURus | Industrial ITE (Commercial) Railway | 216 W |
 Traco Power | -40 C | 105 ░C | 1 | Chassis Mount | 2250 VDC | 43 V | 12 V | 88 % | 160 V | 20 A | Enclosed | 87.6 mm 88.9 mm 103.1 mm | 3.45 " 3.5 " 4.06 " | CB cULus cURus | Industrial ITE (Commercial) Railway | 240 Watts |
 Traco Power | -40 C | 105 ░C | 1 | Chassis Mount | 2250 VDC | 19 V | 28 V | 90 % | 75 V | 7.5 A | Enclosed | 87.6 mm 88.9 mm 103.1 mm | 3.45 " 3.5 " 4.06 " | CB cULus cURus | Industrial ITE (Commercial) Railway | 210 W |
