G3R450 Series

Catalog

SIC MOSFET N-CH 9A TO263-7

Part	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Vgs (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Power Dissipation (Max)
GeneSiC Semiconductor G3R450MT17J	2.7 V	585 mOhm	15 V	Surface Mount	9 A	1700 V	18 nC	N-Channel	15 V	TO-263-7	175 °C	-55 °C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA

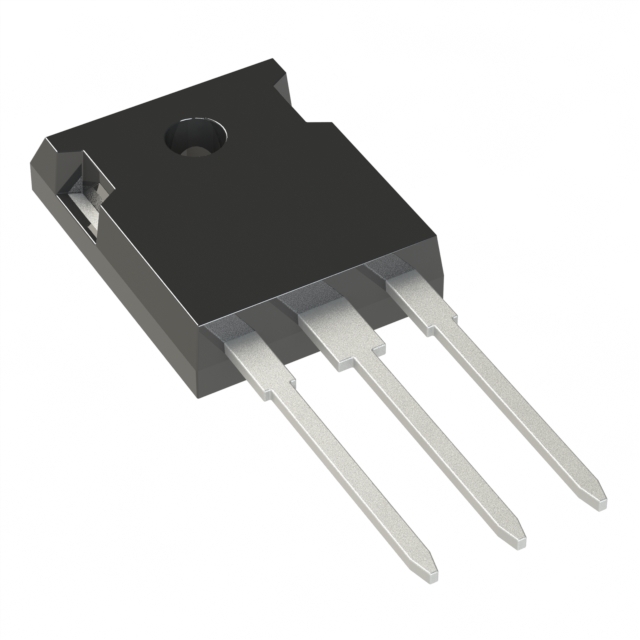

GeneSiC Semiconductor G3R450MT17D	2.7 V	585 mOhm	15 V	Through Hole	9 A	1700 V	18 nC	N-Channel	15 V	TO-247-3	175 °C	-55 °C	TO-247-3	88 W
