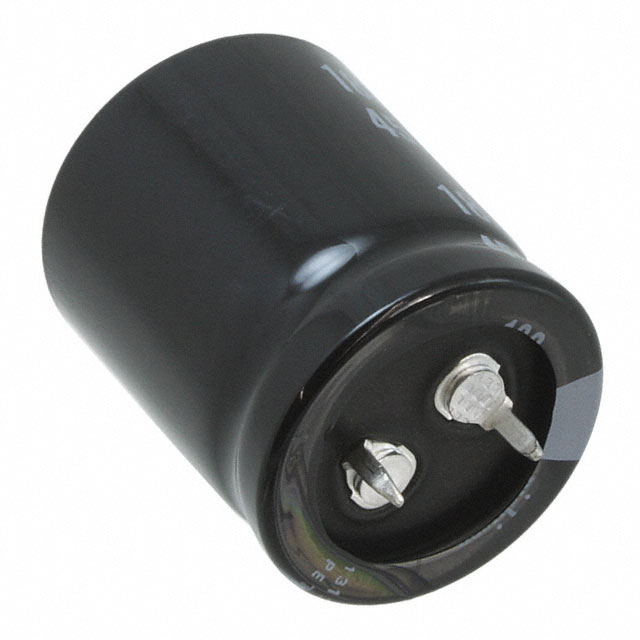

LGL Series

Manufacturer: Nichicon

Catalog

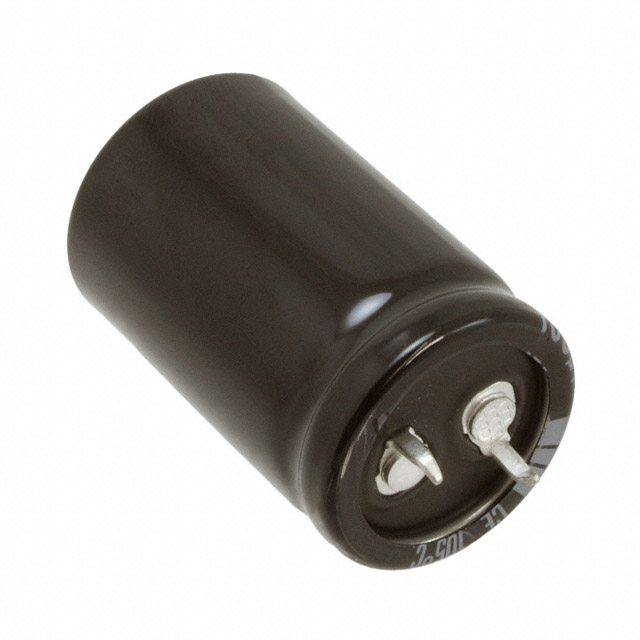

CAP ALUMINUM LYTIC 220UF 400V 20% (25 X 25MM) SNAP-IN 10MM 0.78A 2000H 105°C BULK

Part	Lead Spacing	Lead Spacing	Polarization	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Tolerance	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon LGL2G221MELA25	0.394 in	10 mm	Polar	780 mA	1.1154 A	400 V	0.984 "	25 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	220 µF	1.063 in	27 mm	Through Hole	General Purpose
Nichicon LGL2W181MELZ35	0.394 in	10 mm	Polar	770 mA		450 V	0.866 "	22 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	180 µF			Through Hole	General Purpose	37 mm	1.457 in
Nichicon LGL2G681MELC35	0.394 in	10 mm	Polar	1.74 A	2.4882 A	400 V	1.378 "	35 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	680 µF			Through Hole	General Purpose	37 mm	1.457 in

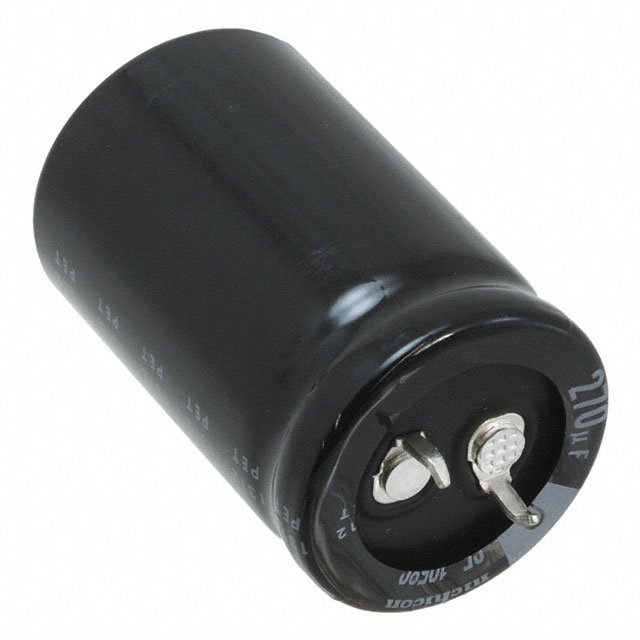

Nichicon LGL2G391MELA40	0.394 in	10 mm	Polar	1.23 A	1.7589 A	400 V	0.984 "	25 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	390 µF			Through Hole	General Purpose		1.654 in	42 mm
Nichicon LGL2G271MELA30	0.394 in	10 mm	Polar	910 mA	1.3013 A	400 V	0.984 "	25 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	270 µF			Through Hole	General Purpose		1.26 in	32 mm
Nichicon LGL2G271MELZ35	0.394 in	10 mm	Polar	910 mA	1.3013 A	400 V	0.866 "	22 mm	105 ░C	-25 °C	2000 Hrs	20 %	Radial Can - Snap-In	270 µF			Through Hole	General Purpose	37 mm	1.457 in
