NTLUS3192PZ Series

Power MOSFET 20V 3.4A 85 mOhm Single P-Channel UDFN6 with ESD

Catalog

Power MOSFET 20V 3.4A 85 mOhm Single P-Channel UDFN6 with ESD

Part	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	FET Type	Drain to Source Voltage (Vdss)	Technology	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Power Dissipation (Max) [Max]	Mounting Type	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id
ON Semiconductor NTLUS3192PZTAG	450 pF	8.5 nC	-55 °C	150 °C	6-UDFN (1.6x1.6)	6-PowerUFDFN	P-Channel	20 V	MOSFET (Metal Oxide)	2.2 A	8 V	600 mW	Surface Mount	85 mOhm	1.5 V 4.5 V	1 V

Power MOSFET 20V 3.4A 85 mOhm Single P-Channel UDFN6 with ESD

• UDFN Package with Exposed Drain Pads

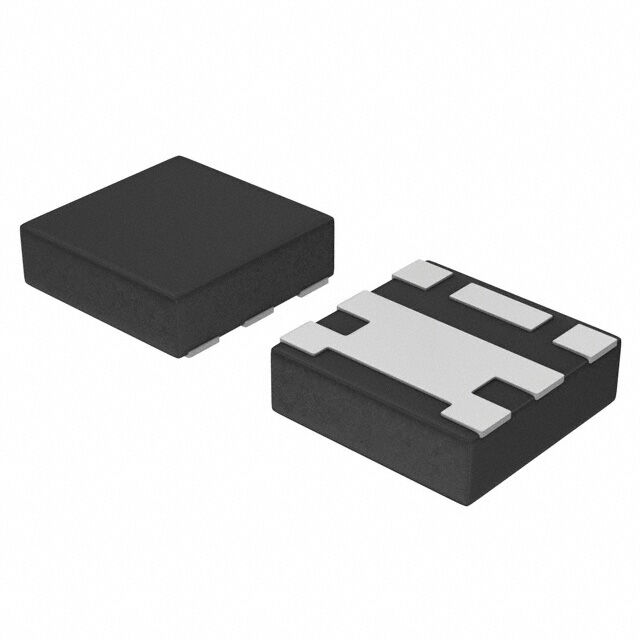

• Low Profile UDFN 1.6x1.6x0.55 mm Package

• Lowest RDS(on) in 1.6x1.6 Package

• ESD Protected Gate

• Halide-Free

• Pb-Free

POWER MOSFET, -20 V, -4.2 A, µCool™ Single P-Channel, ESD, 1.6 x 1.6 x 0.55 mm UDFN Package
