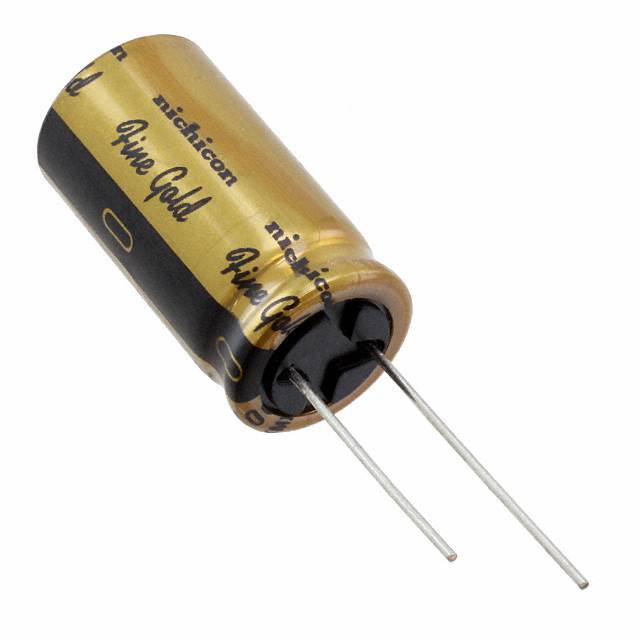

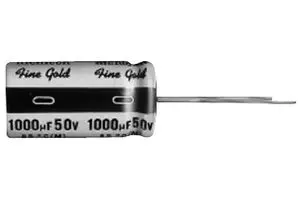

UFG Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 33UF 63 VOLTS 20% TOL.

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Tolerance	Lifetime @ Temp.	Package / Case	Polarization	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

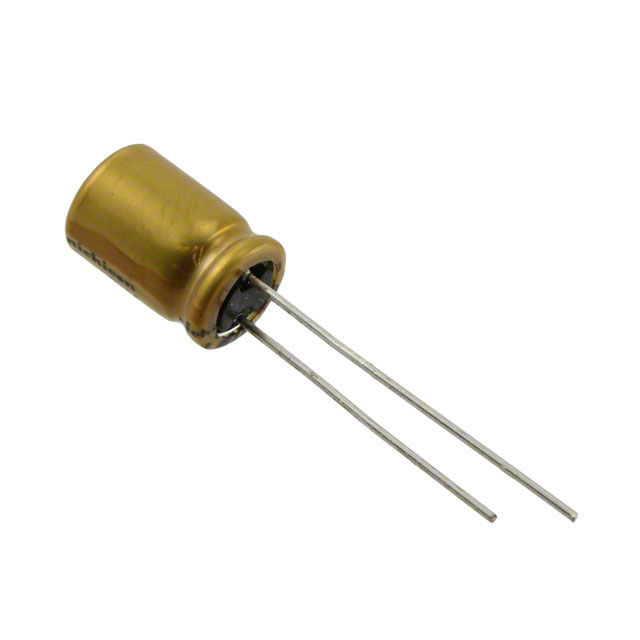

Nichicon UFG1J330MPM	Audio	85 °C	-40 C	0.138 in	3.5 mm	0.512 "	13 mm	0.315 in	8 mm	105 mA	33 ÁF	210 mA	63 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole

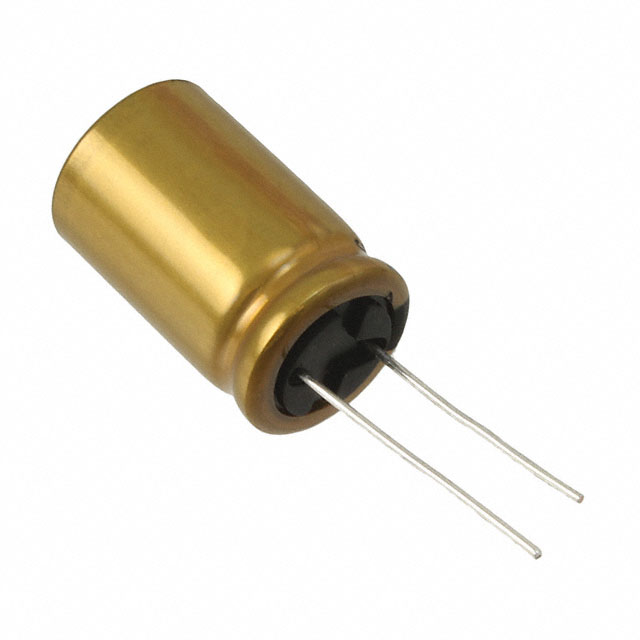

Nichicon UFG1V102MHM1TN	Audio	85 °C	-40 C	0.295 in	7.5 mm			0.63 in	16 mm	1.06 A	1000 µF		35 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole	1.063 in	27 mm

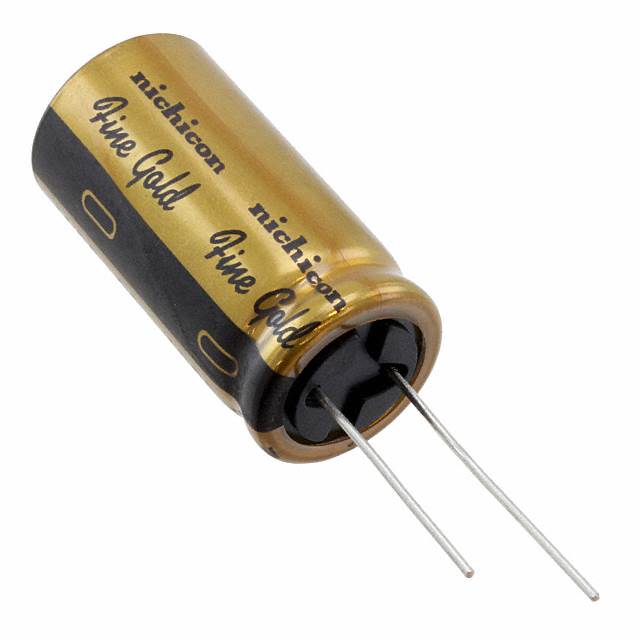

Nichicon UFG1J102MHM	Audio	85 °C	-40 C	0.295 in	7.5 mm	1.476 in	37.5 mm	0.709 in	18 mm	1.4 A	1000 µF	1.61 A	63 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole
Nichicon UFG1C222MHM	Audio	85 °C	-40 C	0.295 in	7.5 mm			0.63 in	16 mm	1.29 A	2200 µF	1.4835 A	16 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole	1.063 in	27 mm
Nichicon UFG2A331MHM	Audio	85 °C	-40 C	0.295 in	7.5 mm	1.319 in		0.63 in	16 mm	734 mA	330 µF	1.101 A	100 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole			33.5 mm
Nichicon UFG1A221MPM	Audio	85 °C	-40 C	0.138 in	3.5 mm	0.512 "	13 mm	0.315 in	8 mm	170 mA	220 µF	255 mA	10 V	20 %	1000 Hrs	Can Radial	Polar	Through Hole
