28S Series

Catalog

FERRITE CABLE CORES 250OHM 100MHZ 26.67MM INSIDE SLOT / SOLD AS SINGLE SIDES. ORDER 2 TO FORM A SET

Part	Type	Mounting Type	Impedance @ Frequency	Length	Length	Outer Dimension [x]	Outer Dimension [x]	Outer Dimension [y]	Outer Dimension [y]	Material	Inner Dimension [y]	Inner Dimension [x]	Inner Dimension [x]	Inner Dimension [y]	Design	Inner Dimension	Inner Dimension

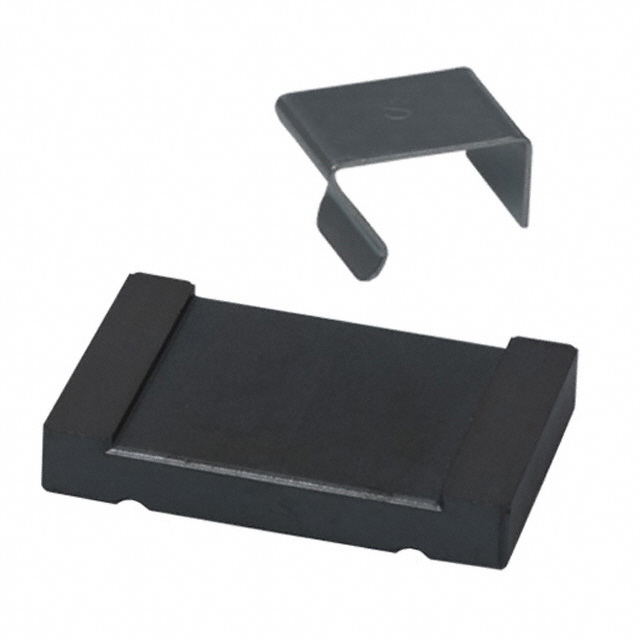

Laird Technologies EMI 28S2023-0M0	Flat	Free Hanging	250 Ohm	1 in	25.4 mm	1.5 "	38.1 mm	6.35 mm	0.25 "	28	0.84 mm	1.05 in	26.67 mm	0.033 in	Clip Together
Laird Technologies EMI 28S2001-2A2	Flat	Free Hanging	230 Ohm	1.084 in	27.53 mm	2.641 "	67.08 mm	16.66 mm	0.656 "	28					Hinged (Snap On)	1.91 mm 53.75 mm	0.075 in 2.116 in

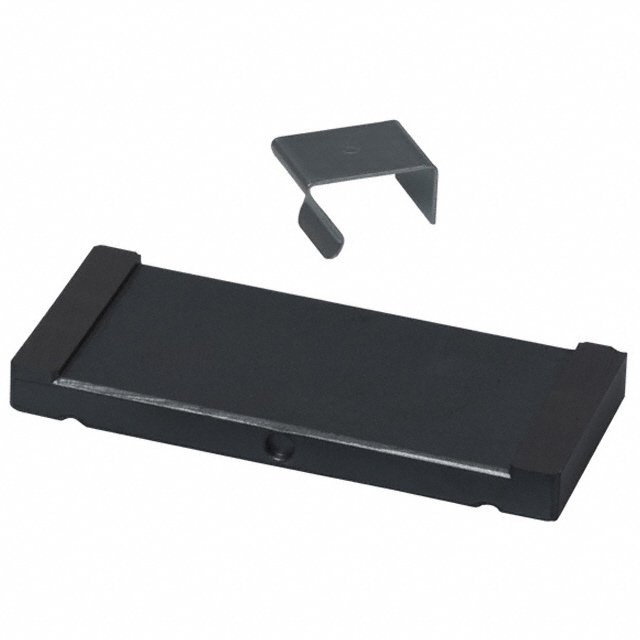

Laird Technologies EMI 28S2001-0M0	Flat	Free Hanging	280 Ohm	1.125 in	28.58 mm	2.5 in	63.5 mm	6.35 mm	0.25 "	28	0.84 mm	2.05 "	52.07 mm	0.033 in	Clip Together
