AM1PS Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 5V 1W

Part	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Mounting Type	Applications	Voltage - Output 1	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
aimtec AM1PS-1205SZ	10.8 V	1	1000 V	Through Hole	ITE (Commercial)	5 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	200 mA	Isolated Module	13.2 V	76 %	85 °C	-40 C
aimtec AM1PS-1215SZ	10.8 V	1	1000 V	Through Hole	ITE (Commercial)	15 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	66.6 mA	Isolated Module	13.2 V	75 %	85 °C	-40 C
aimtec AM1PS-1212SH30Z	10.8 V	1	3000 V	Through Hole	ITE (Commercial)	12 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	83.3 mA	Isolated Module	13.2 V	75 %	85 °C	-40 C
aimtec AM1PS-0512SZ	4.5 V	1	1000 V	Through Hole	ITE (Commercial)	12 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	83.3 mA	Isolated Module	5.5 V	75 %	85 °C	-40 C

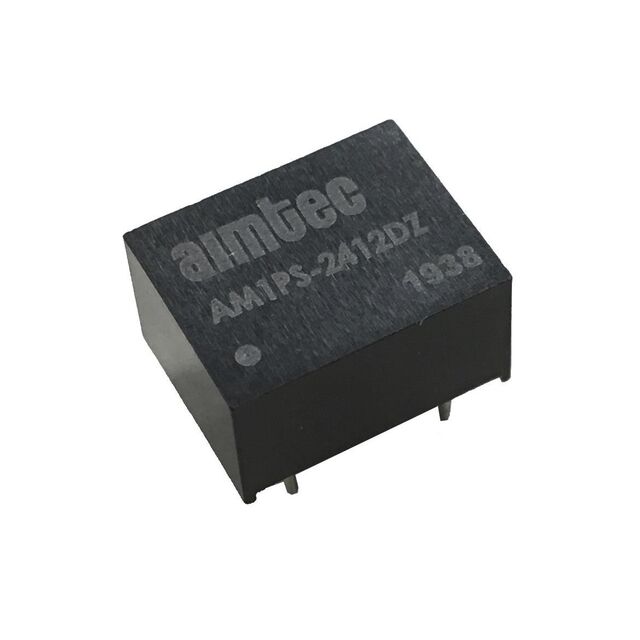

aimtec AM1PS-0515SZ	4.5 V	1	1000 V	Through Hole	ITE (Commercial)	15 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	66.6 mA	Isolated Module	5.5 V	73 %	85 °C	-40 C
aimtec AM1PS-1205SH30Z	10.8 V	1	3000 V	Through Hole	ITE (Commercial)	5 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	200 mA	Isolated Module	13.2 V	76 %	85 °C	-40 C
aimtec AM1PS-0524SH30JZ	4.5 V	1	3000 V	Through Hole	ITE (Commercial)	24 V	8-DIP Module							42 mA	Isolated Module	5.5 V	85 %	105 ░C	-40 C	cULus cURus
aimtec AM1PS-2412SH30Z	21.6 V	1	3000 V	Through Hole	ITE (Commercial)	12 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	83.3 mA	Isolated Module	26.4 V	75 %	85 °C	-40 C
aimtec AM1PS-1212SZ	10.8 V	1	1000 V	Through Hole	ITE (Commercial)	12 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	83.3 mA	Isolated Module	13.2 V	75 %	85 °C	-40 C
aimtec AM1PS-0515SH30Z	4.5 V	1	3000 V	Through Hole	ITE (Commercial)	15 V	8-DIP Module	0.27 "	10.2 mm	0.4 "	6.9 mm	12.7 mm	0.5 "	66.6 mA	Isolated Module	5.5 V	73 %	85 °C	-40 C
