A16056 Series

Manufacturer: Laird Technologies - Thermal Materials

Catalog

THERM PAD 228.6MMX228.6MM GRAY

Part	Shelf Life Start	Shelf Life	Shape	Adhesive	Thickness	Thickness	Outline [y]	Outline [x]	Type	Thermal Conductivity	Color	Thickness
Laird Technologies - Thermal Materials A16056-02	Date of Shipment	24 Months	Square	Tacky - One Side	0.02 in	0.508 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-01	Date of Shipment	24 Months	Square	Tacky - One Side		10 mils	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray	0.01 in
Laird Technologies - Thermal Materials A16056-04	Date of Shipment	24 Months	Square	Tacky - One Side	0.04 in	1.016 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-07	Date of Shipment	24 Months	Square	Tacky - One Side	0.07 in	1.778 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray

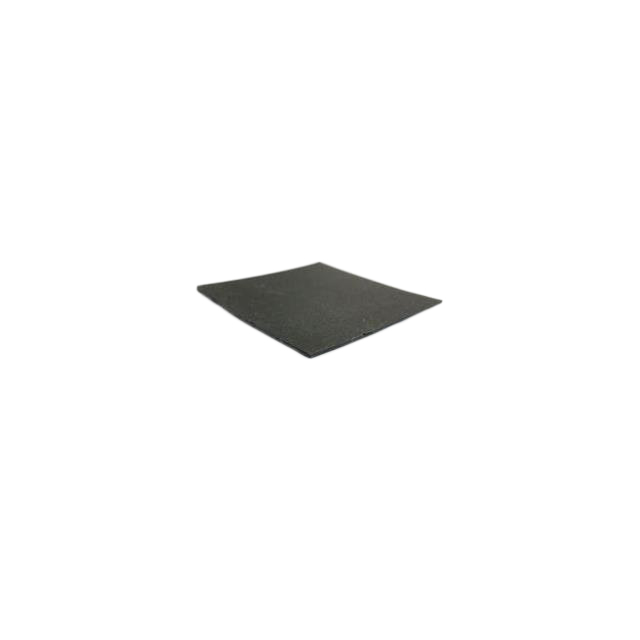

Laird Technologies - Thermal Materials A16056-08	Date of Shipment	24 Months	Square	Tacky - One Side	0.08 in	80 mils	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray

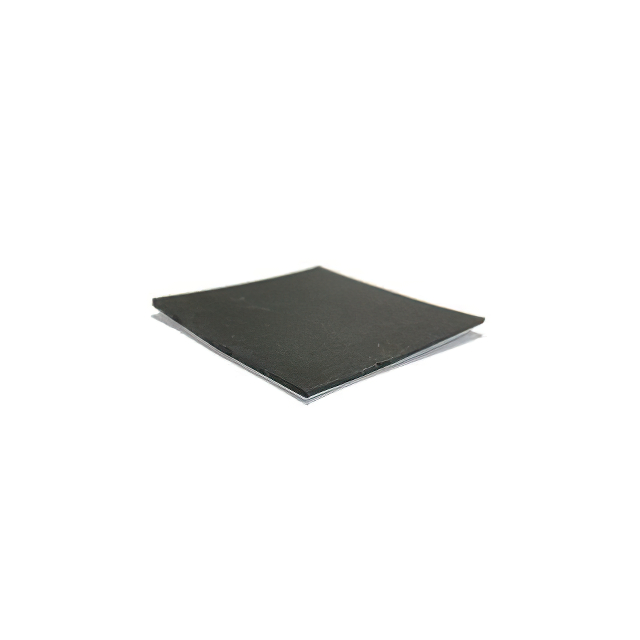

Laird Technologies - Thermal Materials A16056-17	Date of Shipment	24 Months	Square	Tacky - One Side	0.17 "	4.32 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-16	Date of Shipment	24 Months	Square	Tacky - One Side	0.16 "	4.06 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-06	Date of Shipment	24 Months	Square	Tacky - One Side	0.06 in	1.524 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-20	Date of Shipment	24 Months	Square	Tacky - One Side	0.2 "	200 mils	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
Laird Technologies - Thermal Materials A16056-09	Date of Shipment	24 Months	Square	Tacky - One Side	0.09 in	2.286 mm	228.6 mm	228.6 mm	Gap Filler Pad Sheet	3 W/m-K	Gray
