FDC Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

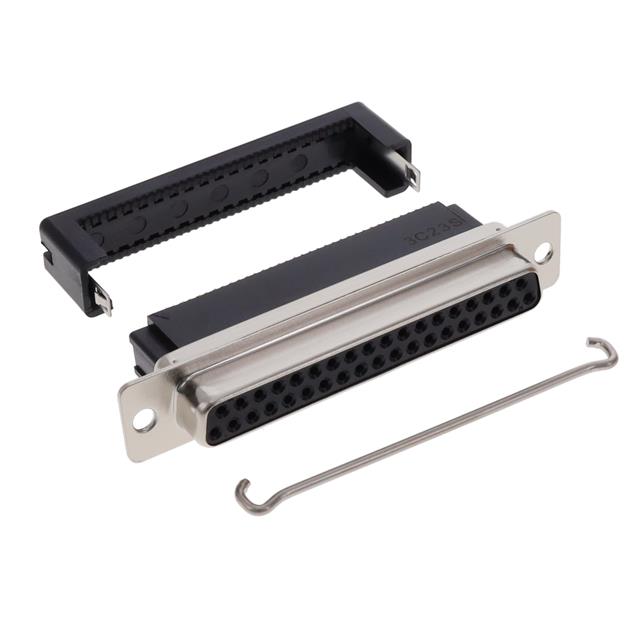

CONN D-SUB PLUG PNL MNT
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Color | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Contact Type | Primary Material | Features | Number of Rows [custom] | Shell Material, Finish | Flange Feature | Contact Finish | Number of Positions | Connector Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Copper Alloy | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 200 V | Black | Free Hanging (In-Line) | 4 | DC C | IDC Ribbon Cable | Signal | Metal | Feed Through Grounding Indents | 2 | Nickel Plated Steel | Housing/Shell (Unthreaded) | Gold | 37 | Plug Male Pins | D-Sub | ||
 Hirose Electric Co Ltd | Beryllium Copper | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 200 V | Black | Free Hanging (In-Line) | 4 | DC C | IDC Ribbon Cable | Signal | Metal | Feed Through Grounding Indents | 2 | Nickel Plated Steel | Housing/Shell (Unthreaded) | Gold | 37 | Plug Male Pins | D-Sub | 0.203 çm | 8 µin |
Hirose Electric Co Ltd | Beryllium Copper | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 200 V | Black | Free Hanging (In-Line) | 4 | DC C | IDC Ribbon Cable | Signal | Metal | Feed Through | 2 | Nickel Plated Steel | Housing/Shell (Unthreaded) | Gold | 37 | Plug Male Pins | D-Sub | 0.203 çm | 8 µin |
 Hirose Electric Co Ltd | Copper Alloy | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 200 V | Black | Free Hanging (In-Line) | 4 | DC C | IDC Ribbon Cable | Signal | Metal | Feed Through | 2 | Nickel Plated Steel | Housing/Shell (Unthreaded) | Gold | 37 | Receptacle Female Sockets | D-Sub |
