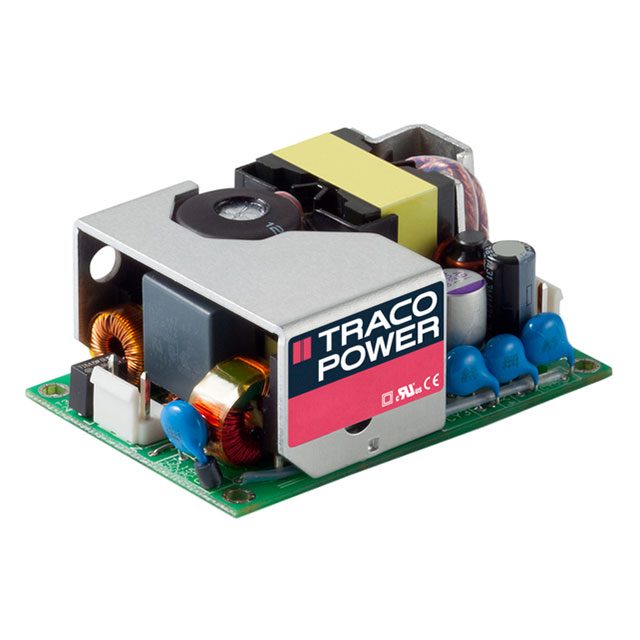

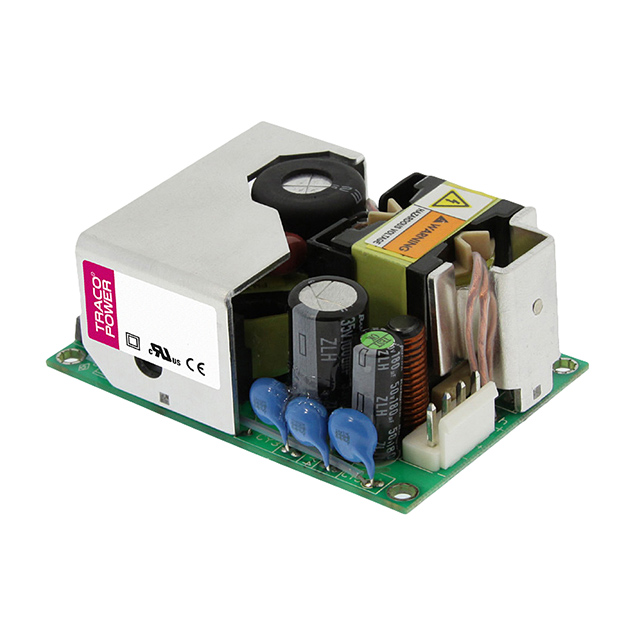

TPI 100 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 28V 100W
| Part | Minimum Load Required | Efficiency | Number of Outputs | Voltage - Output 1 | Current - Output 1 | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Power (Watts) | Features | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 92 % | 1 | 28 V | 3.58 A | 3000 V | 29.5 mm | 2 in | 76.2 mm | 1.16 in | 3 " | 50.8 mm | CB CE cURus | Open Frame | 80 ¯C | -40 °C | Chassis Mount | ITE (Commercial) | 100 W | Adjustable Output PFC Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | |
 Traco Power | 91 % | 1 | 48 V | 2.09 A | 3000 V | 29.5 mm | 2 in | 76.2 mm | 1.16 in | 3 " | 50.8 mm | CB CE cURus | Open Frame | 80 ¯C | -40 °C | Chassis Mount | ITE (Commercial) | 100 W | Adjustable Output PFC Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC |
