C8123 Series

Catalog

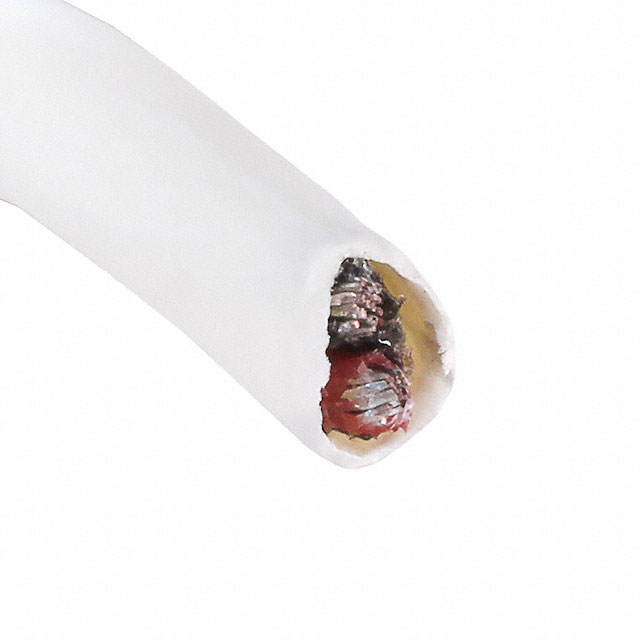

CABLE 2COND 18AWG NAT SHLD 500'

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Coverage	Conductor Insulation	Features	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length	Length	Conductor Material	Wire Gauge	Voltage	Cable Type	Usage	Length [x]	Length [x]	Number of Conductors
Prysmian Group C8123.41.86	Natural	30 AWG	19	Flexfoil®	100 %	Fluorinated Ethylene-Propylene (FEP)	Drain Wire	Foil	4.06 mm	0.16 in	0.014 in	0.356 mm	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Tinned	18 AWG	300 VDC	Multi-Conductor	Communication Control	100 ft	30.5 m	2
Prysmian Group C8123.41.86	Natural	30 AWG	19			Fluorinated Ethylene-Propylene (FEP)	Drain Wire	Foil	4.06 mm	0.16 in	0.014 in	0.356 mm	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Tinned	18 AWG	300 VDC	Multi-Conductor	Communication Control	100 ft	30.5 m	2
