IXTT10N100D2 Series

Disc Mosfet N-CH Depl Mode-Std TO-268AA

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Disc Mosfet N-CH Depl Mode-Std TO-268AA

Part	Rds On (Max) @ Id, Vgs [Max]	FET Feature	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Technology	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Supplier Device Package	Package / Case	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id
Littelfuse/Commercial Vehicle Products IXTT10N100D2	1.5 Ohm	Depletion Mode	-55 °C	150 °C	20 V	10 V	Surface Mount	MOSFET (Metal Oxide)	1000 V	5320 pF	10 A	200 nC	N-Channel	TO-268AA	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	695 W

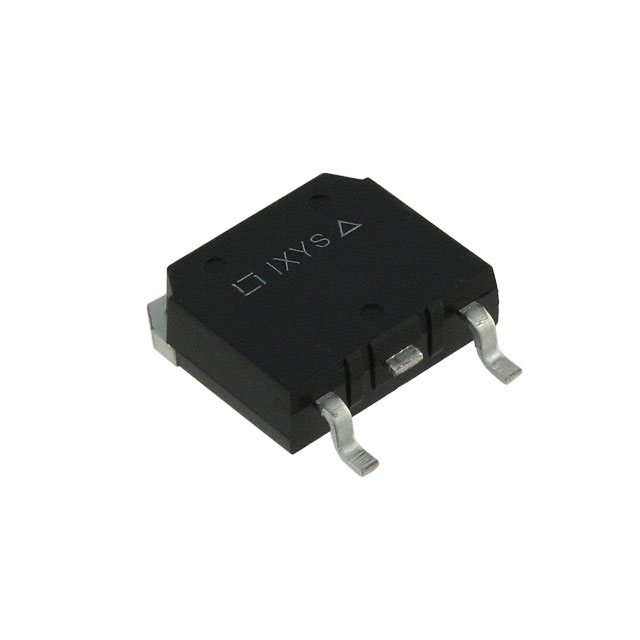

Littelfuse/Commercial Vehicle Products IXTT10N100D		Depletion Mode	-55 °C	150 °C	30 V	10 V	Surface Mount	MOSFET (Metal Oxide)	1000 V	2500 pF	10 A	130 nC	N-Channel	TO-268AA	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA		1.4 Ohm	400 W	3.5 V

Catalog

Disc Mosfet N-CH Depl Mode-Std TO-268AA

Key Features

• Normally on operation

• Linear mode tolerant

• Low RDS(on)

• Useable body diode

• Internal standard packages

• UL 94 V-0 Flammability qualified (molding epoxies)

Description

As opposed to the enhancement-mode MOSFETs, these depletion-mode devices operate in a ‘normally-on’ mode, requiring zero turn-on voltage at the gate terminal. With blocking voltages up to 1700V and low drain-to-source resistances they provide simplified control and reduced power dissipation in systems that are continuously "on" (emergency or burglar alarms, for instance).
