DB Series

Manufacturer: Wakefield Thermal Solutions

Catalog

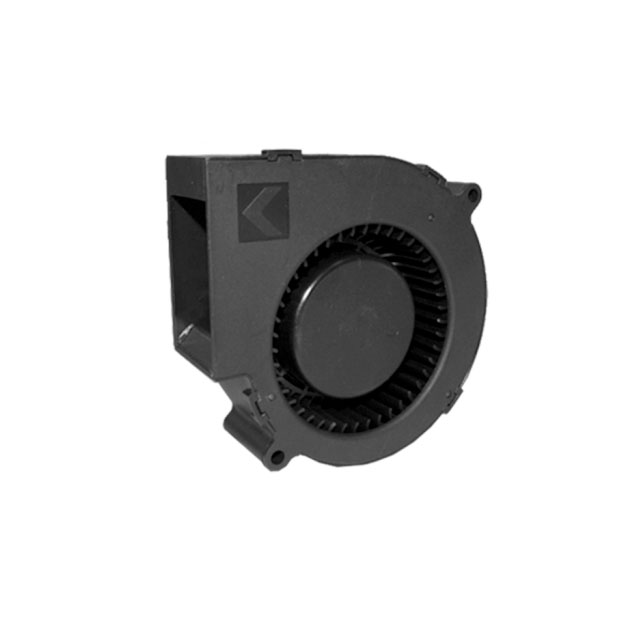

BLOWERS & CENTRIFUGAL FANS BLOWER, 97X94X33MM, 12VDC, 24.2CFM, 4.56W, 48DBA, 2700RPM, 2 BALL, 2 LEAD WIRES

Part	Air Flow	Air Flow	Ingress Protection	Termination	Noise	Width	Fan Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Voltage - Rated	Bearing Type	Approval Agency	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Material - Blade	Lifetime @ Temp.	Width [y]	Size / Dimension [y]	Weight [custom]	Weight [custom]	Features
Wakefield Thermal Solutions DB0973312L2B-2T0	24.2 CFM	0.678 m³/min	IP55 - Dust Protected Water Resistant	2 Wire Leads	48 dB	33 mm	Blower	4.56 W	70 °C	-10 °C	2700 RPM	12 VDC	Ball	CE	0.75 in H2O	186.8 Pa	94.3 mm	97.2 mm	Rectangular/Rounded
Wakefield Thermal Solutions DB0973312L2B-2T0	24.2 CFM	0.678 m³/min	IP55 - Dust Protected Water Resistant	2 Wire Leads	48 dB	33 mm	Blower	4.56 W	70 °C	-10 °C	2700 RPM	12 VDC	Ball	CE	0.75 in H2O	186.8 Pa	94.3 mm	97.2 mm	Rectangular/Rounded	Polybutylene Terephthalate (PBT)	70000 Hrs
Wakefield Thermal Solutions DB0602512H2B-2T0	12.8 CFM	0.359 m³/min	IP55 - Dust Protected Water Resistant	2 Wire Leads	47 dB		Blower	6 W	70 °C	-10 °C	5500 RPM	12 VDC	Ball	CE	1.13 in H2O	281.5 Pa	60 mm	60 mm	Square/Rounded			25 mm
Wakefield Thermal Solutions DB1203212U2B-2T0	37.5 CFM	1.05 m³/min	IP55 - Dust Protected Water Resistant	2 Wire Leads	52 dB		Blower	15 W	70 °C	-10 °C	3100 RPM	12 VDC	Ball	CE	1.29 in H2O	321.3 Pa		119 mm	Square/Rounded			32 mm	119 mm
Wakefield Thermal Solutions DB0511512L2B-2T0	2.5 CFM	0.07 m³/min	IP55 - Dust Protected Water Resistant	2 Wire Leads	27 dB(A)		Blower	720 mW	70 °C	-10 °C	3500 RPM	12 VDC	Ball	CE	0.28 in H2O	69.7 Pa	51.2 mm	51.2 mm	Square/Rounded			15 mm
Wakefield Thermal Solutions DB0620505H1A-BT0	2.7 CFM	0.076 m³/min	IP55 - Dust Protected Water Resistant	4 Position Rectangular Connector		5.6 mm	Blower	1.9 W	70 °C	-10 °C	7400 RPM	5 V	Ball		0.783 in H2O	195 Pa		61.8 mm	Rectangular/Rounded				57.3 mm	17.24 g	0.038 lb	PWM Control Speed Sensor (Tach)
