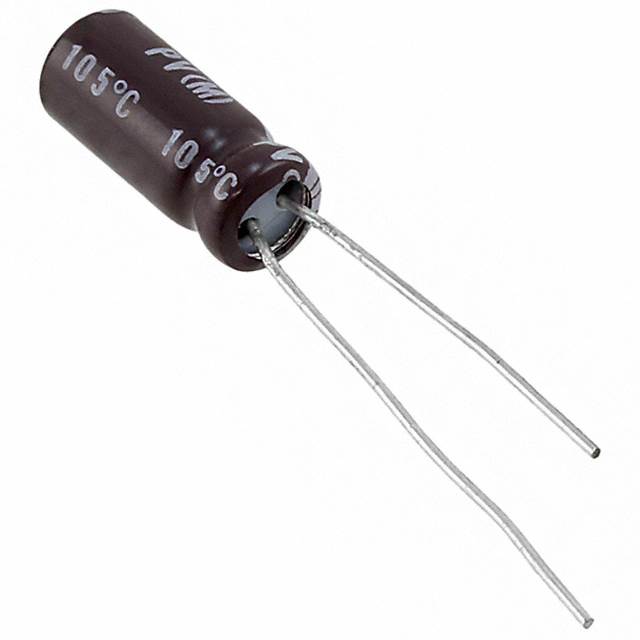

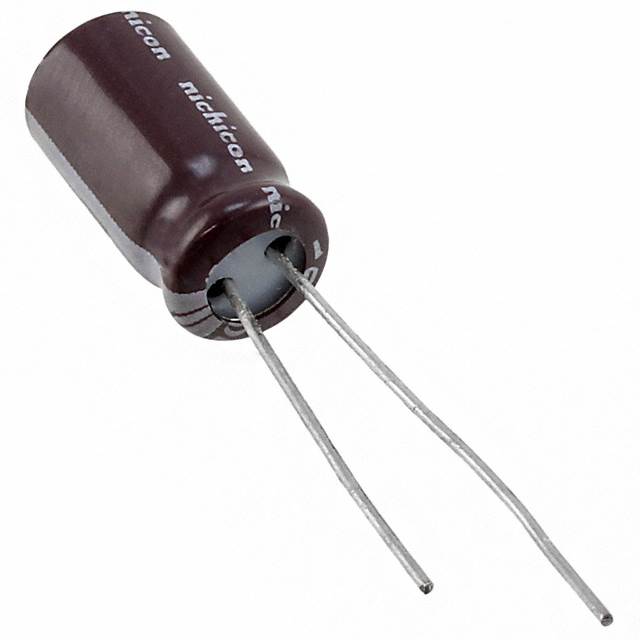

UPV Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 25VOLTS 47UF 6.3X11 20% 2.5LS

Part	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Voltage - Rated	Capacitance	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Polarization
Nichicon UPV1E470MGD	20 %	0.248 "	6.3 mm	Through Hole	-55 C	105 ░C	Can Radial	2.5 mm	0.098 in	25 VDC	47 µF	5000 Hrs	General Purpose	0.492 in	12.5 mm	940 mOhms
Nichicon UPV1E330MFD	20 %	0.197 in	5 mm	Through Hole	-55 C	105 ░C	Can Radial	2 mm	0.079 in	25 VDC	33 ÁF	5000 Hrs	General Purpose	0.492 in	12.5 mm	1.4 Ohms
Nichicon UPV0J391MGD1TA	20 %	0.315 in	8 mm	Through Hole	-55 C	105 ░C	Can Radial	3.5 mm	0.138 in	6.3 VDC	390 µF	5000 Hrs	General Purpose				0.512 "	13 mm	445 mA	Polar
Nichicon UPV1H2R2MFD	20 %	0.197 in	5 mm	Through Hole	-55 C	105 ░C	Can Radial	2 mm	0.079 in	50 VDC	2.2 µF	5000 Hrs	General Purpose	0.492 in	12.5 mm	7 Ohms				Polar
Nichicon UPV1E101MGD	20 %	0.315 in	8 mm	Through Hole	-55 C	105 ░C	Can Radial	3.5 mm	0.138 in	25 VDC	100 µF	5000 Hrs	General Purpose			410 mOhms	0.512 "	13 mm
Nichicon UPV1V680MGD1TD	20 %	0.315 in	8 mm	Through Hole	-55 C	105 ░C	Can Radial	3.5 mm	0.138 in	35 V	68 µF	5000 Hrs	General Purpose			410 mOhms	0.512 "	13 mm
Nichicon UPV1A221MGD	20 %	0.315 in	8 mm	Through Hole	-55 C	105 ░C	Can Radial	3.5 mm	0.138 in	10 V	220 µF	5000 Hrs	General Purpose			410 mOhms	0.512 "	13 mm
