UHD SS Series
Manufacturer: Hammond Manufacturing
Beta
⌘K

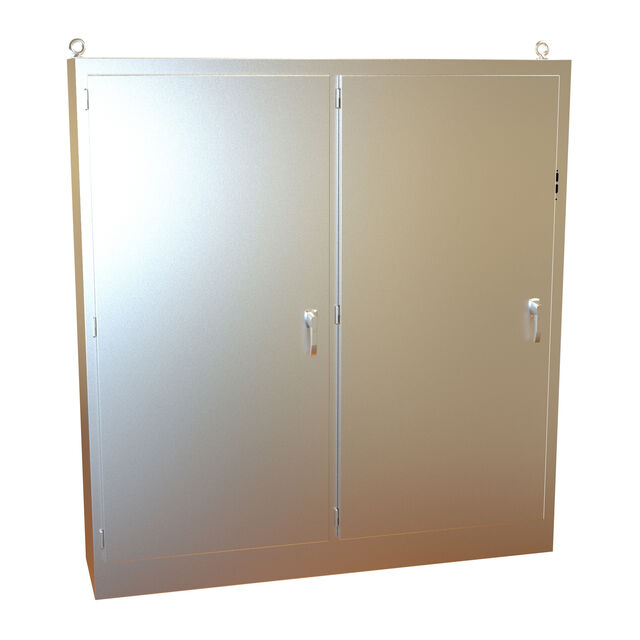

ELECTRICAL ENCLOSURES N4X 304SS DISC 84X118.25X18
| Part | Ratings | Container Type | Color | Design | Area (L x W) [custom] | Area (L x W) [custom] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Material | Thickness | Height [z] | Height [z] | Area (L x W) | Area (L x W) | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 12 13 4 4X IP66 NEMA 3R UL-508A | Box | Natural | Hinged Door | 2144 in² | 1.383 m² | 460.5 mm | 3003.55 mm | 18.13 " | 118.25 " | Metal Stainless Steel | 12 Gauge | 84.134 in | 2137 mm | |||
 Hammond Manufacturing | 12 13 4 4X IP66 NEMA 3R UL-508A | Box | Natural | Hinged Door | 18.13 " 460.5 mm | 79 " 2006.6 mm | Metal Stainless Steel | 12 Gauge | 84.134 in | 2137 mm | 9240 cm² | 1432 in² | |||||
 Hammond Manufacturing | IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL 508A | Enclosure | Natural | Hinged Door | 612.9 mm | 2006.6 mm | 24.13 " | 79 " | Metal Stainless Steel | 0.102 " | 84.134 in | 2137 mm | 1.247 m² | 1933 in² | 2.59 mm | ||
 Hammond Manufacturing | IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL 508A | Enclosure | Natural | Hinged Door | 612.9 mm | 2006.6 mm | 24.13 " | 79 " | Metal Stainless Steel | 0.102 " | 90.118 in | 2289 mm | 1.247 m² | 1933 in² | 2.59 mm |
