ADG5421F Series

±60 V Fault Protection and Detection, 11 Ω RON, Dual SPST Switch

Catalog

±60 V Fault Protection and Detection, 11 Ω RON, Dual SPST Switch

Part	Voltage - Supply, Dual (V±)	Voltage - Supply, Dual (V±) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	-3db Bandwidth	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Multiplexer/Demultiplexer Circuit	Supplier Device Package	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits	Switch Circuit	On-State Resistance (Max) [Max]	Package / Case	Channel-to-Channel Matching (ΔRon)	Crosstalk	Current - Leakage (IS(off)) (Max) [Max]	Voltage - Supply, Dual (V±) [Min]	Package / Case [x]	Package / Case [x]
Analog Devices ADG5421BCPZ-RL7	9 V	22 V	-40 °C	125 °C	Surface Mount	120 pC	199 ns	184 ns	250 MHz	9 V	40 V	1:1	10-LFCSP-WD (3x3)	12 pF	11 pF	2	SPST - NO	14 Ohm	10-VFDFN Exposed Pad CSP	100 mOhm	-85 dB	250 pA

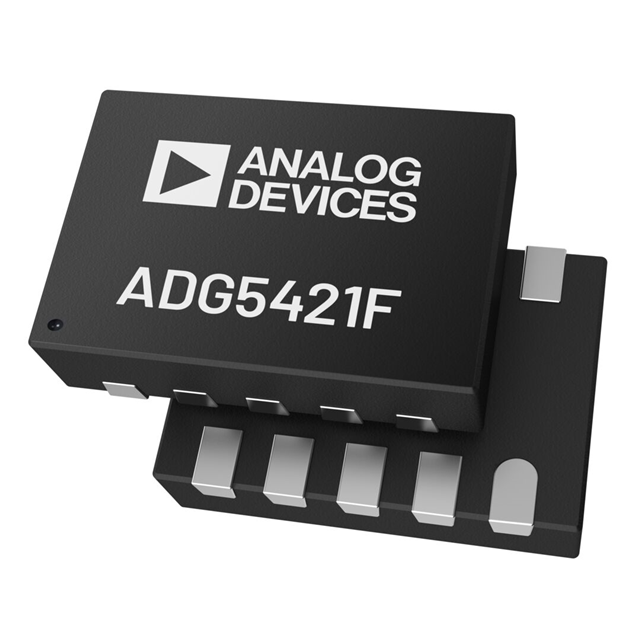

Analog Devices ADG5421FBCPZ-RL7		22 V	-40 °C	125 °C	Surface Mount	-150 pC	15.9 µs	160 ns	630 MHz	8 V	44 V	1:1	10-LFCSP (3x2)	5 pF	6 pF	2	SPST - NC	14 Ohm	10-WFDFN CSP	20 mOhm	-78 dB	200 pA	-5 V
Analog Devices ADG5421BRMZ-RL7	9 V	22 V	-40 °C	125 °C	Surface Mount	120 pC	199 ns	184 ns	250 MHz	9 V	40 V	1:1	10-MSOP	12 pF	11 pF	2	SPST - NO	14 Ohm	10-MSOP 10-TFSOP	100 mOhm	-85 dB	250 pA		3 mm	0.118 in

Catalog

±60 V Fault Protection and Detection, 11 Ω RON, Dual SPST Switch

Key Features

• Overvoltage fault protection up to ±60 V on S1 and S2 pins

• Power-off protection up to ±60 V on S1 and S2 pins

• Known state without digital inputs present

• Low on resistance of 11 Ω typical

• Ultraflat, on resistance

• Latch-up immune under any circumstance

• 3.5 kV human body model (HBM) ESD rating

• VSSto VDD−2 V signal range

• Fully specified at ±15 V, ±20 V, +12 V, and +36 V

• ±5 V to ±22 V dual-supply operation

• 8 V to 44 V single-supply operation

• 10-lead, 3 mm × 2 mm, LFCSP

Description

The ADG5421 is a monolithic industrial CMOS analog switch containing two independent latch-up immune single-pole/single-throw (SPST) switches. Each switch conducts equally well in both directions when on, and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. Both ADG5421 switches are turned on with a Logic 1 input. TheADG5423exhibits break-before-make action for use in multiplexer applications.The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical. The latch-up immune construction, and high ESD rating, makes these switches more robust in harsh environments.PRODUCT HIGHLIGHTSTrench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.Low RON.Dual-supply operation. For applications where the analog signal is bipolar, the ADG5421 can be operated from dual supplies up to ±22 V.Single-supply operation. For applications where the analog signal is unipolar, the ADG5421 can be operated from a single-rail power supply up to 40 V.3 V logic compatible digital inputs: VINH= 2.0 V, VINL= 0.8 V.No VLlogic power supply required.Available in 10-lead MSOP package.APPLICATIONSHigh voltage signal routingAutomatic test equipmentAnalog front-end circuitsPrecision data acquisitionIndustrial InstrumentationAmplifier gain selectRelay replacement
