DF3Z Series

Catalog

CONN HEADER SMD 5POS 2MM

Part	Mated Stacking Heights	Fastening Type	Mounting Type	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Features	Current Rating (Amps)	Number of Positions Loaded	Insulation Color	Shrouding	Number of Rows	Contact Finish - Mating	Number of Positions	Insulation Material	Style	Contact Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

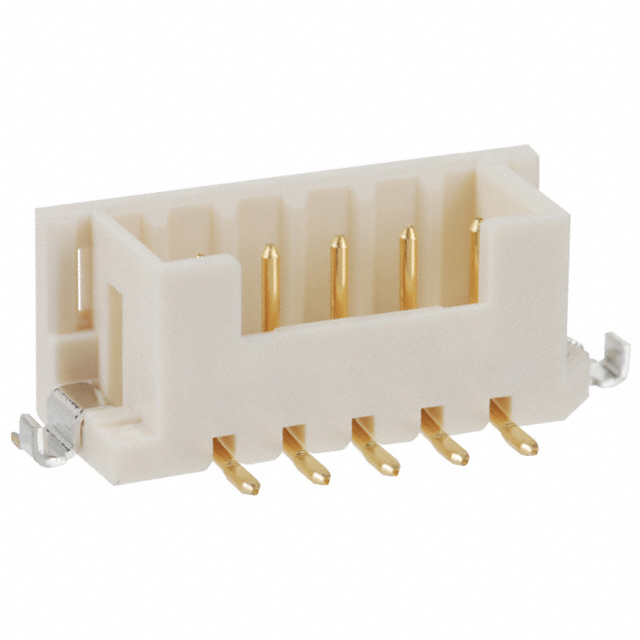

Hirose Electric Co Ltd DF3Z-5P-2V(50)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	5	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin

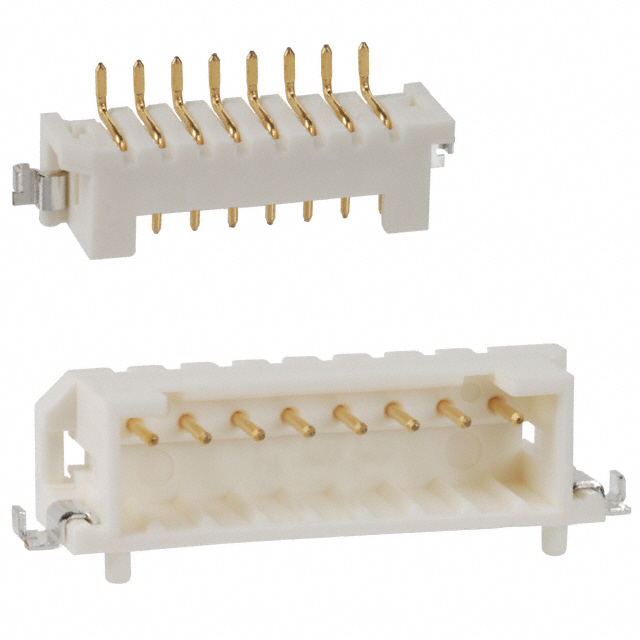

Hirose Electric Co Ltd DF3Z-8P-2H(50)		Push-Pull	Right Angle Surface Mount	Circular	5.6 mm	0.22 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	8	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin
Hirose Electric Co Ltd DF3Z-2P-2H(51)		Push-Pull	Right Angle Surface Mount	Circular	5.6 mm	0.22 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	2	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin

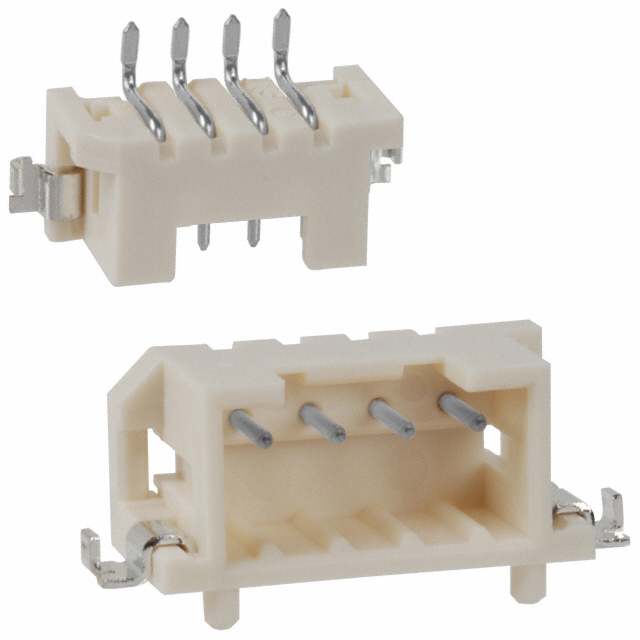

Hirose Electric Co Ltd DF3Z-4P-2H(51)		Push-Pull	Right Angle Surface Mount	Circular	5.6 mm	0.22 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	4	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin
Hirose Electric Co Ltd DF3Z-5P-2V(20)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1		5	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin	Tin	39.4 µin	1 µm

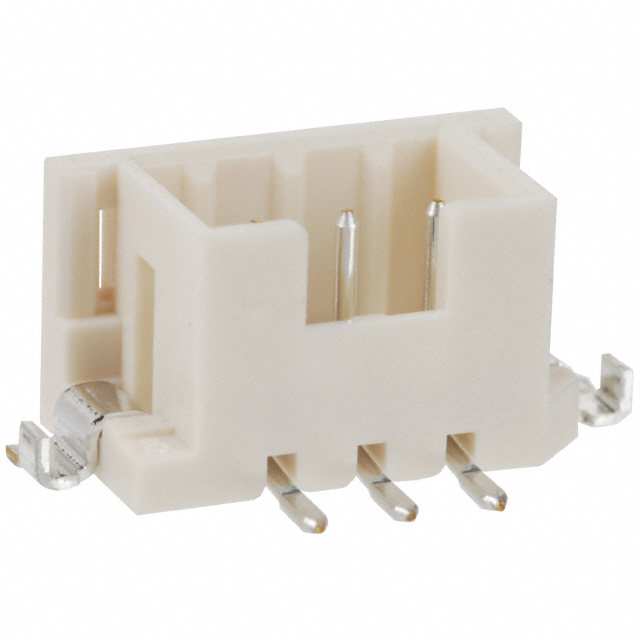

Hirose Electric Co Ltd DF3Z-3P-2V(21)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1			Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin	Tin
Hirose Electric Co Ltd DF3Z-2P-2H(50)		Push-Pull	Right Angle Surface Mount	Circular	5.6 mm	0.22 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	2	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin

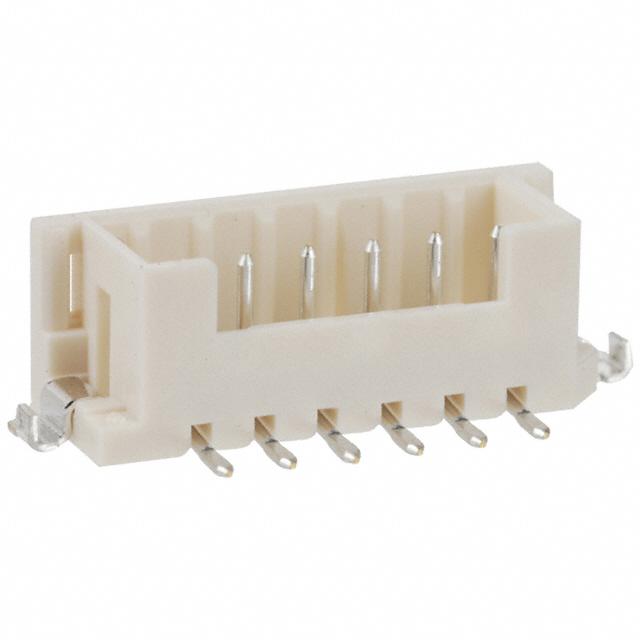

Hirose Electric Co Ltd DF3Z-6P-2V(21)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1		6	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin	Tin

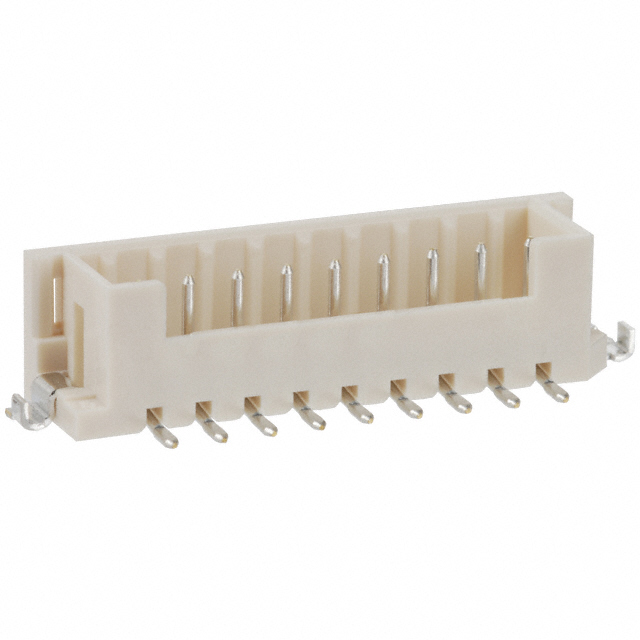

Hirose Electric Co Ltd DF3Z-9P-2V(20)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1		9	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin	Tin	39.4 µin	1 µm
Hirose Electric Co Ltd DF3Z-10P-2V(51)	7.7 mm 8.4 mm	Push-Pull	Surface Mount	Circular	5.9 mm	0.232 in	UL94 V-0	Board Guide Solder Retention	3 A	All	Beige	Shrouded - 4 Wall	1	Gold	10	Nylon Polyamide (PA)	Board to Board Cable	Brass	0.079 "	2 mm	-55 C	105 ░C	Header	Solder	Male Pin
