AOB2500 Series

Catalog

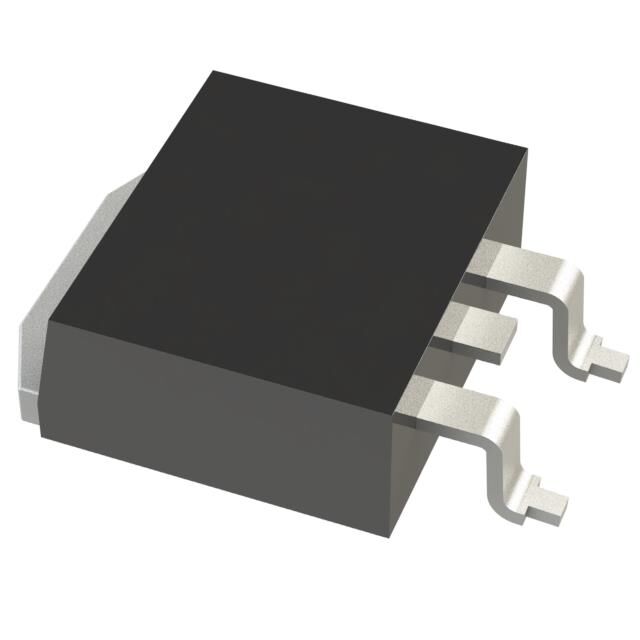

MOSFET N-CH 150V 11.5/152A TO263

Part	Package / Case	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Technology	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package
Alpha & Omega Semiconductor Inc. AOB2500L	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2.1 W 375 W	11.5 A 152 A	MOSFET (Metal Oxide)	150 V	6.2 mOhm	3.5 V	6 V 10 V	20 V	N-Channel	175 °C	-55 °C	Surface Mount	6460 pF	136 nC	TO-263 (D2PAK)
