213225 Series

Manufacturer: Molex

Catalog

1.50MM PITCH CLIK-MATE WIRE-TO-BOARD PCB RECEPTACLE, SINGLE ROW, SURFACE MOUNT, VERTICAL, 0.10ΜM GOLD (AU) PLATING, 12 CIRCUITS, BLACK

Part	Style	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Fastening Type	Mounting Type	Insulation Color	Voltage Rating	Current Rating (Amps)	Contact Material	Insulation Material	Number of Positions Loaded	Features
Molex 2132251211

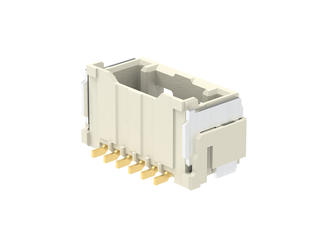

Molex 2132250670	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	6	Forked	30 Áin	0.76 Ám	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention

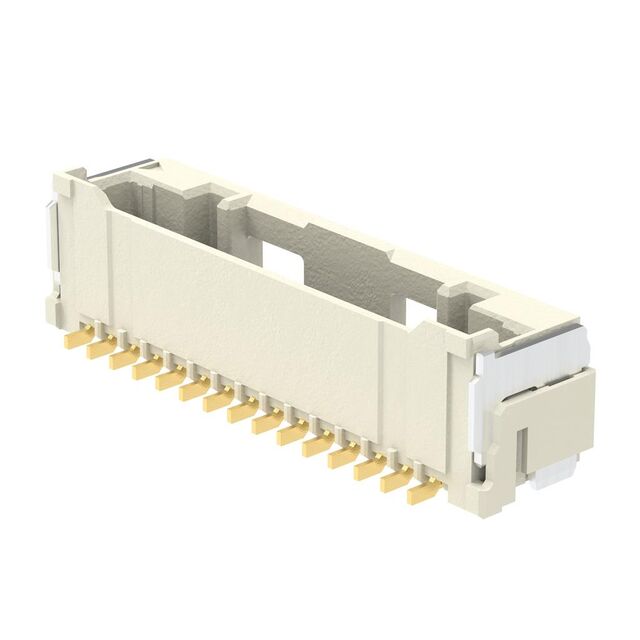

Molex 2132251530	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	15	Forked	15 µin	0.38 µm	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention

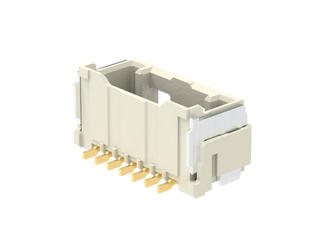

Molex 2132250770	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	7	Forked	30 Áin	0.76 Ám	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention
Molex 2132251570	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	15	Forked	30 Áin	0.76 Ám	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention

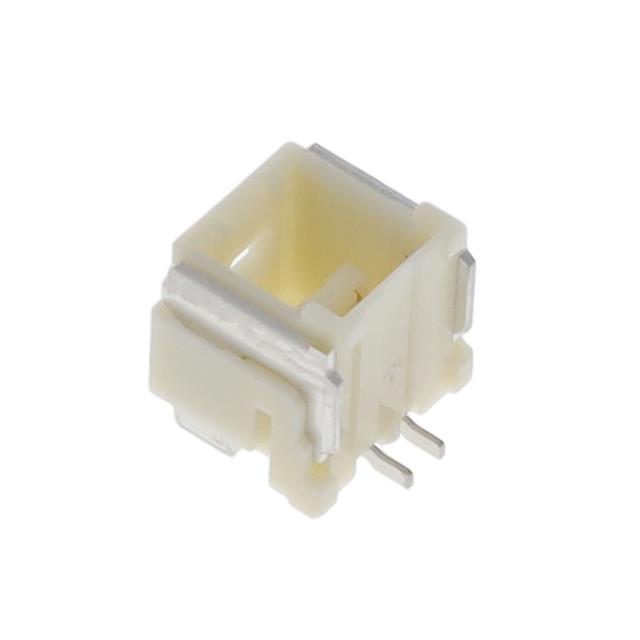

Molex 2132250270	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	2	Forked	30 Áin	0.76 Ám	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention

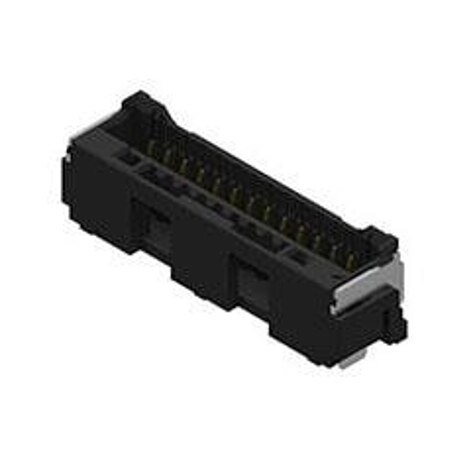

Molex 2132250931
Molex 2132251511
Molex 2132250371

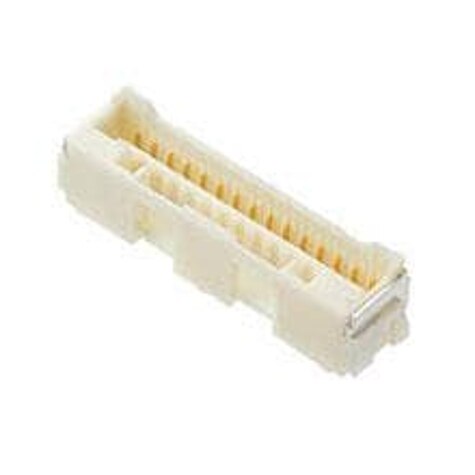

Molex 2132250970	Board to Cable/Wire	Tin	1 çm	39.4 çin	Receptacle	9	Forked	30 Áin	0.76 Ám	1	UL94 V-0	7.3 mm	0.287 in	-40 °C	105 ░C	Gold	Solder	Latch Holder	Surface Mount	Natural	100 VAC	Varies by Wire Gauge	Copper Alloy	Nylon Polyamide (PA)	All	Pick and Place Solder Retention
