LGZ Series
Manufacturer: Nichicon
Beta
⌘K

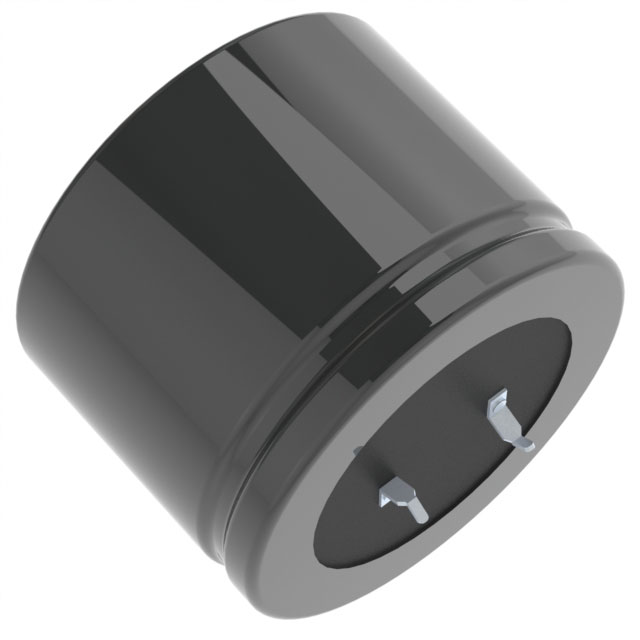

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 450V 120UF 20%
| Part | Package / Case | Applications | Lead Spacing | Lead Spacing | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Tolerance | Mounting Type | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ripple Current @ Low Frequency | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Min] | Polarization | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Radial Can - Snap-In | General Purpose | 0.394 in | 10 mm | 1.378 " | 35 mm | 120 µF | 20 % | Through Hole | 450 V | 1.063 in | 27 mm | 720 mA | 20000 Hrs | 105 ░C | -25 °C | Polar | 1.0296 A |
