EFC2K107NUZ Series

Dual N-Channel Power MOSFET 12V, 20A, 2.85mΩ

Catalog

Dual N-Channel Power MOSFET 12V, 20A, 2.85mΩ

Part	Technology	Configuration	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Mounting Type	Vgs(th) (Max) @ Id	Package / Case	Operating Temperature	FET Feature	FET Feature	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Power - Max [Max]

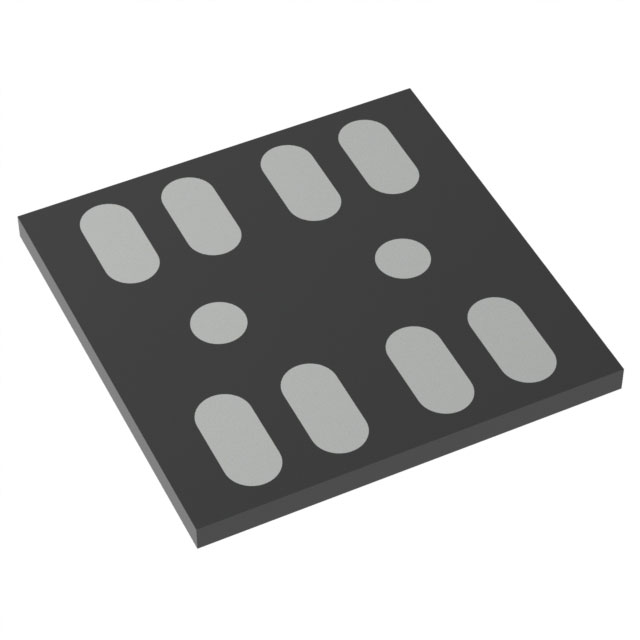

ON Semiconductor EFC2K107NUZTCG	MOSFET (Metal Oxide)	2 N-Channel (Dual) Common Drain	20 A	30 nC	12 V	Surface Mount	1.3 V	10-SMD No Lead	150 °C	Logic Level Gate	2.5 V	1.84	10-WLCSP	1.96	1.8 W

Catalog

Dual N-Channel Power MOSFET 12V, 20A, 2.85mΩ

Key Features

• High Speed Switching

• Low Gate Charge

• 2.5 V Drive

• 2 kV ESD HBM

• Common-Drain Type

• ESD Diode-Protected Gate

• RoHS compliance

Description

This Power MOSFET features a low on-state resistance. This device is suitable for applications such as power switches of portable machines. Best suited for 1-cell lithium-ion battery applications.
