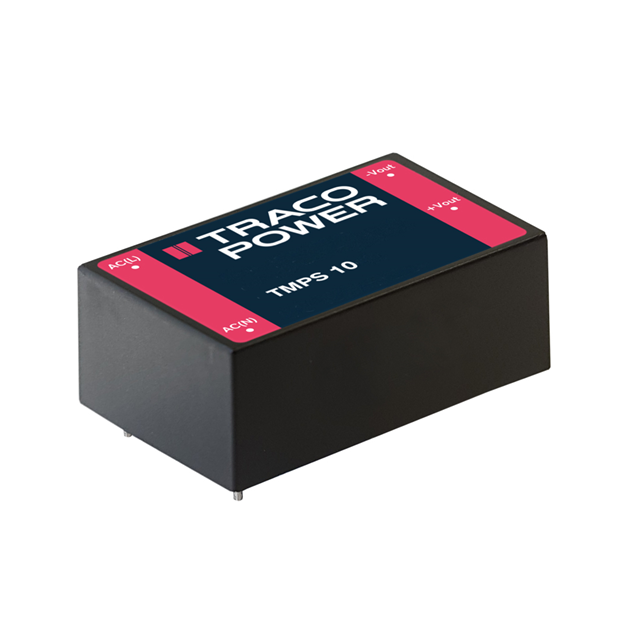

TMPS 10 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 0.41A 10W 4-PIN
| Part | Load Regulation | Approval Agency | Voltage - Output 1 | Applications | Package / Case | Efficiency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Type | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | ±1% | CB CE cURus | 24 V | Household Appliances ITE (Commercial) | 4-DIP Module | 86 % | Through Hole | 70 °C | -25 °C | 410 mA | 1 | 25.4 mm | 1.5 in | 15.7 mm | 1 " | 38.1 mm | 0.62 in | Universal Input | Enclosed | 10 W | 85 VAC 120 VDC | 264 VAC 370 VDC |
 Traco Power | ±1% | CB CE cURus | 12 V | Household Appliances ITE (Commercial) | 4-DIP Module | 84 % | Through Hole | 70 °C | -25 °C | 830 mA | 1 | 25.4 mm | 1.5 in | 15.7 mm | 1 " | 38.1 mm | 0.62 in | Universal Input | Enclosed | 10 W | 85 VAC 120 VDC | 264 VAC 370 VDC |
Traco Power | ±1% | CB CE cURus | 48 V | Household Appliances ITE (Commercial) | 4-DIP Module | 84 % | Through Hole | 70 °C | -25 °C | 210 mA | 1 | 25.4 mm | 1.5 in | 15.7 mm | 1 " | 38.1 mm | 0.62 in | Universal Input | Enclosed | 10 W | 85 VAC 120 VDC | 264 VAC 370 VDC |
Traco Power | ±1% | CB CE cURus | 5 V | Household Appliances ITE (Commercial) | 4-DIP Module | 80 % | Through Hole | 70 °C | -25 °C | 2 A | 1 | 25.4 mm | 1.5 in | 15.7 mm | 1 " | 38.1 mm | 0.62 in | Universal Input | Enclosed | 10 W | 85 VAC 120 VDC | 264 VAC 370 VDC |
