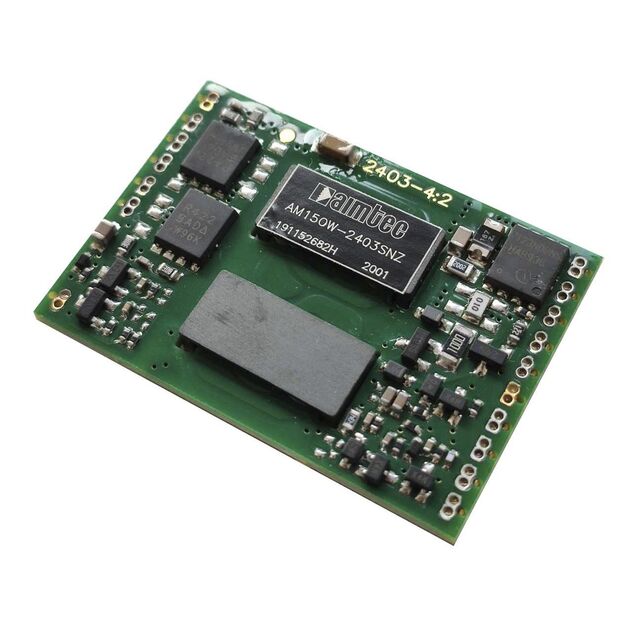

AM15OW Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 3.3V 15W

Part	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Type	Voltage - Output 1	Mounting Type	Voltage - Isolation	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
aimtec AM15OW-2403SNZ-LM	36 V	15 W	85 °C	-40 C	1	9 V	Remote On/Off	4.5 A	88 %	1.16 in	39.9 mm	1.57 in	29.5 mm	6.8 mm	0.27 "	ITE (Commercial)	Isolated Module	3.3 V	Surface Mount	1.5 kV
aimtec AM15OW-2405SNZ	36 V	15 W	85 °C	-40 C	1	9 V	Remote On/Off	3 A	88 %	1.07 in	38.7 mm	1.52 in	27.2 mm	6.2 mm	0.24 in	ITE (Commercial)	Isolated Module	5 V	Through Hole	1.5 kV
aimtec AM15OW-2403SNZ-L	36 V	15 W	85 °C	-40 C	1	9 V	Remote On/Off	4.5 A	88 %	1.07 in	39.9 mm	1.57 in	27.2 mm	6.2 mm	0.24 in	ITE (Commercial)	Isolated Module	3.3 V	Surface Mount	1.5 kV
aimtec AM15OW-4812SNZ-LM	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	1.25 A	89 %							ITE (Commercial)	Isolated Module	12 V	Surface Mount	1.5 kV
aimtec AM15OW-2415SNZ-L	36 V	15 W	85 °C	-40 C	1	9 V	Remote On/Off	1 A	89 %	1.07 in	39.9 mm	1.57 in	27.2 mm	5.8 mm	0.23 "	ITE (Commercial)	Isolated Module	15 V	Surface Mount	1.5 kV
aimtec AM15OW-4805SNZ-LM	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	3 A	88 %	1.16 in	39.1 mm	1.54 in	29.5 mm	6.2 mm	0.24 in	ITE (Commercial)	Isolated Module	5 V	Surface Mount	1.5 kV	15-SMD Module
aimtec AM15OW-4805SNZ-L	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	3 A	88 %	1.07 in	39.9 mm	1.57 in	27.2 mm	6.2 mm	0.24 in	ITE (Commercial)	Isolated Module	5 V	Surface Mount	1.5 kV
aimtec AM15OW-4812SNZ	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	1.25 A	89 %		38.7 mm		27.2 mm	5.8 mm		ITE (Commercial)	Isolated Module	12 V	Through Hole	1.5 kV		1.07 "	0.23 in	1.52 "
aimtec AM15OW-4803SNZ-M	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	4.5 A	88 %	1.16 in	39.1 mm	1.54 in			0.27 "	ITE (Commercial)	Isolated Module	3.3 V	Through Hole	1.5 kV					29.5 mm	6.8 mm
aimtec AM15OW-4812SNZ-L	75 V	15 W	85 °C	-40 C	1	18 V	Remote On/Off	1.25 A	89 %		38.7 mm		27.2 mm	5.8 mm		ITE (Commercial)	Isolated Module	12 V	Surface Mount	1.5 kV		1.07 "	0.23 in	1.52 "
