LSIC2SD065A20A Series

650V/20A SiC SBD TO220-2L AEC-Q101

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

650V/20A SiC SBD TO220-2L AEC-Q101

Part	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Reverse Recovery Time (trr)	Mounting Type	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Reverse Leakage @ Vr	Supplier Device Package

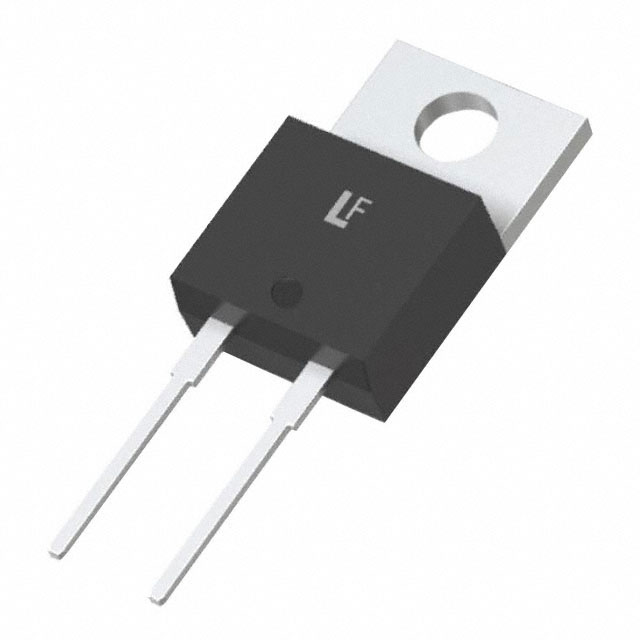

Littelfuse/Commercial Vehicle Products LSIC2SD065A20A	960 pF	45 A	1.8 V	SiC (Silicon Carbide) Schottky	0 ns	Through Hole	TO-220-2	175 ░C	-55 C	650 V	No Recovery Time	50 µA	TO-220-2L

Catalog

650V/20A SiC SBD TO220-2L AEC-Q101

Key Features

• Positive temperature coefficient for safe operation and ease of paralleling

• 175 °C maximum operating junction temperature

• Excellent surge capability

• Extremely fast, temperature-independent switching behavior

• Dramatically reduced switching losses compared to Si bipolar diodes

Description

This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired.
