RNCF0201D Series

Catalog

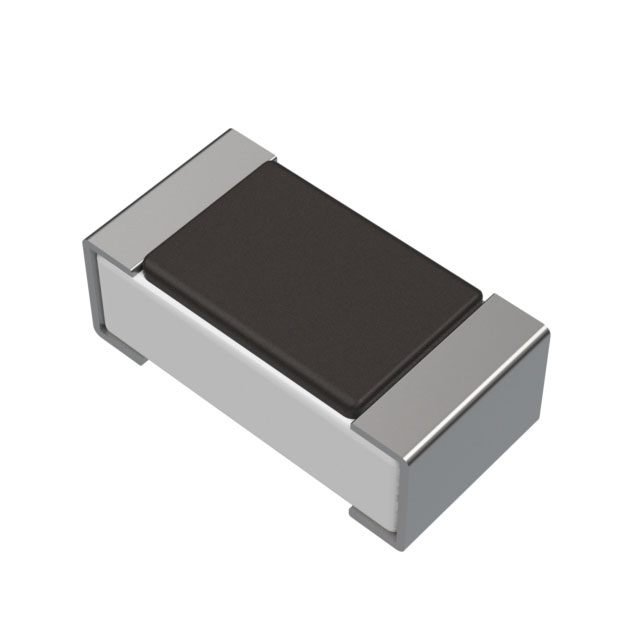

RES SMD 374 OHM 0.5% 1/20W 0201

...

Part	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max]	Supplier Device Package	Ratings	Temperature Coefficient	Resistance	Package / Case	Package / Case	Tolerance
Stackpole Electronics Inc RNCF0201DTE374R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	25 ppm/°C	374 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC22K1	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	22.1 kOhms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC165R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	165 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTE113R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	25 ppm/°C	113 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC1K05	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	1.05 kOhms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTE178R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	25 ppm/°C	178 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC931R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	931 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC4K64	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	4.64 kOhms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC383R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	383 Ohms	0603 Metric	0201	0.5 %
Stackpole Electronics Inc RNCF0201DTC430R	Thin Film	155 C	-55 C	2	0.05 W	50 mW	Automotive AEC-Q200	0.29 mm	0.011 in	0.58 mm	0.023 in	0.28 mm	0.011 "	0201	AEC-Q200	50 ppm/░C	430 Ohms	0603 Metric	0201	0.5 %
