DF12NB(3.5) Series

Catalog

CONN HDR 60POS SMD GOLD

Part	Connector Type	Mounting Type	Mated Stacking Heights	Number of Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch

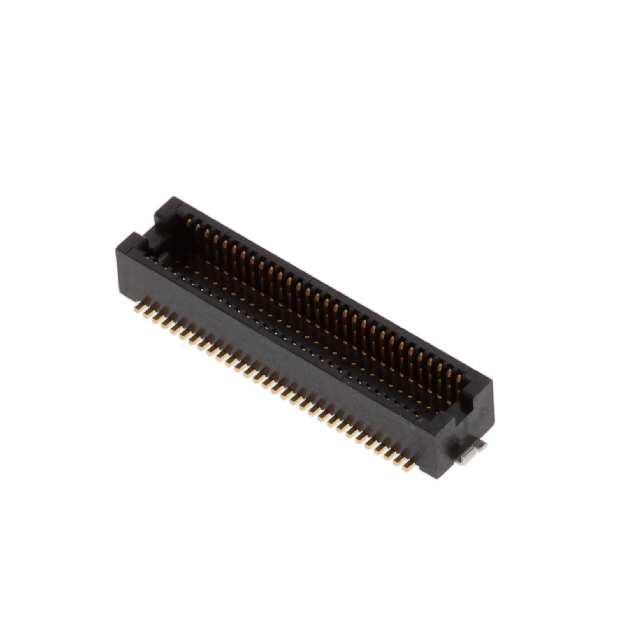

Hirose Electric Co Ltd DF12NB(3.5)-60DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	60	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm

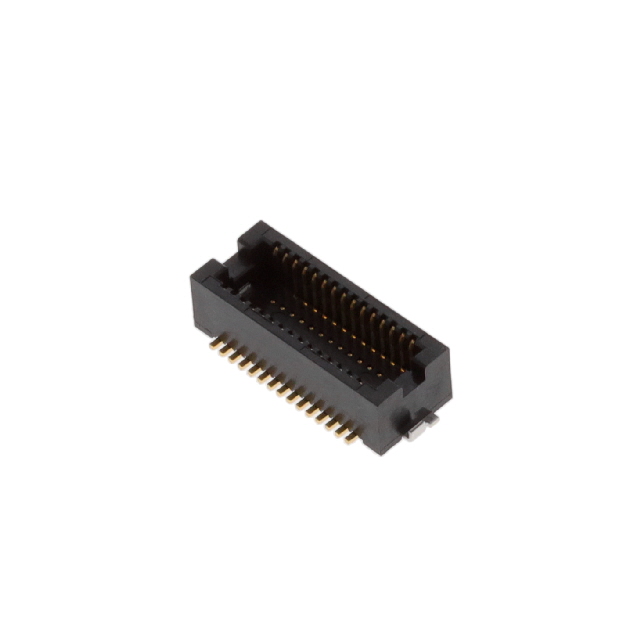

Hirose Electric Co Ltd DF12NB(3.5)-30DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	30	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm
Hirose Electric Co Ltd DF12NB(3.5)-40DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	40	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm

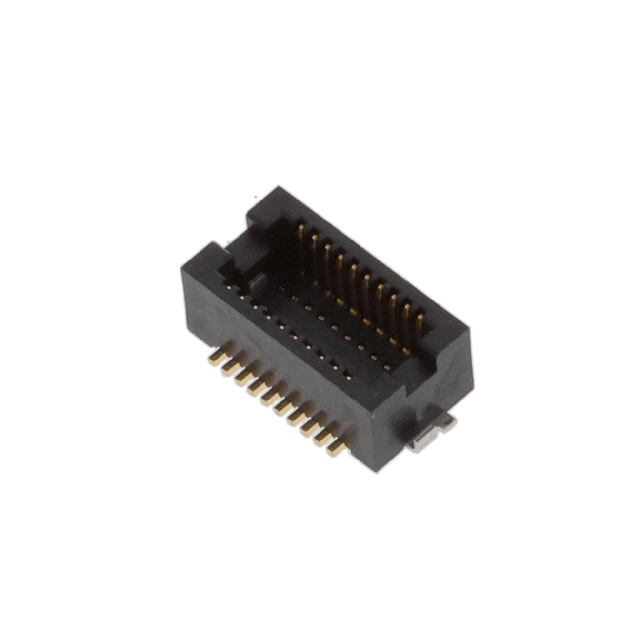

Hirose Electric Co Ltd DF12NB(3.5)-20DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	20	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm

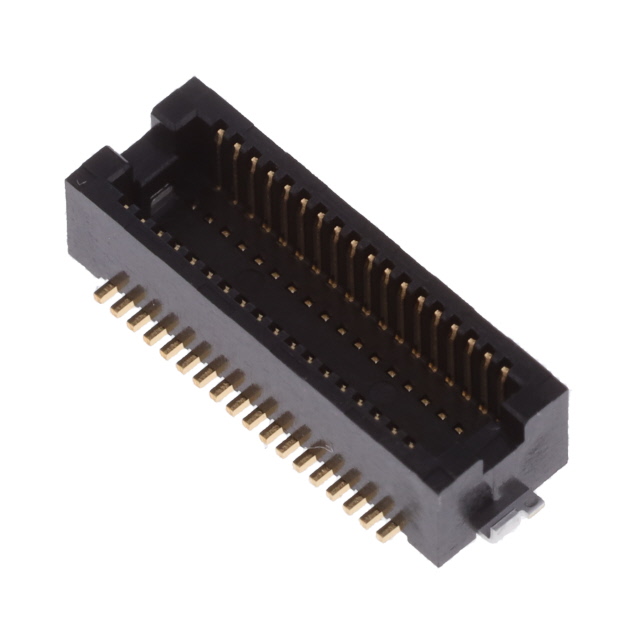

Hirose Electric Co Ltd DF12NB(3.5)-36DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	36	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm

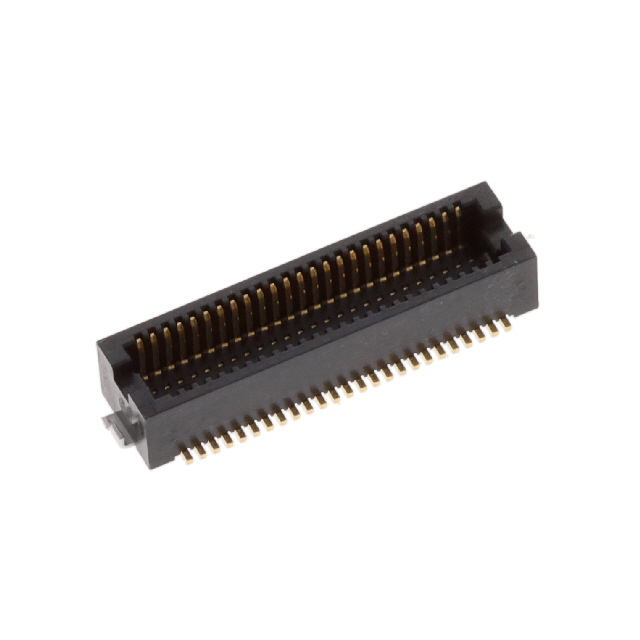

Hirose Electric Co Ltd DF12NB(3.5)-50DP-0.5V(51)	Header Outer Shroud Contacts	Surface Mount	3.5 mm	2	50	0.203 çm	8 µin	Gold	Solder Retention	2.8 mm	0.11 in	0.02 "	0.5 mm
