QXP Series

Manufacturer: Nichicon

Catalog

CAP FILM 0.68UF 250V PP 10% (21 X 10.3 X 17.5MM) RADIAL 17.5MM 105°C BULK

Part	Lead Spacing	Lead Spacing	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Mounting Type	Voltage Rating - AC	Termination	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing
Nichicon QXP2E684KRPT	0.689 in	17.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	250 V	21 mm	0.827 "	10.3 mm	0.406 in	10 %	Through Hole	125 V	PC Pins	Radial	0.68 µF	0.709 in	18 mm	High Frequency Switching

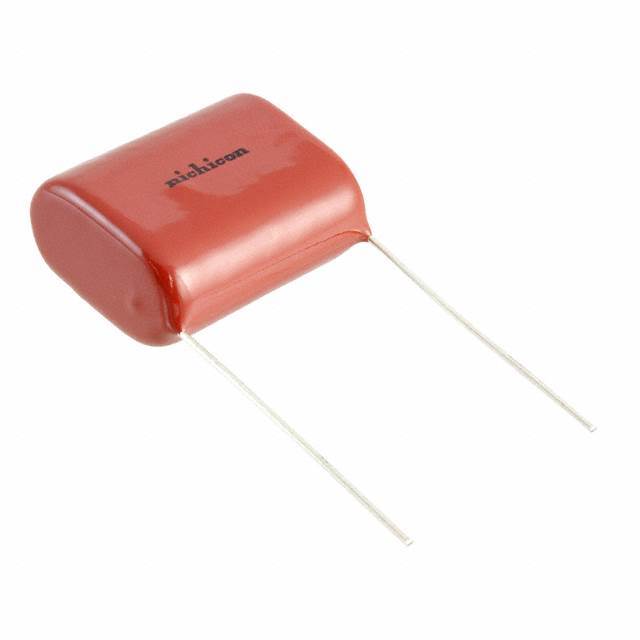

Nichicon QXP2G155KRPT	1.083 in	27.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	400 V	31.5 mm	1.24 in	14.9 mm	0.587 "	10 %	Through Hole	160 V	PC Pins	Radial	1500 nF	1.039 in		High Frequency Switching	26.4 mm
Nichicon QXP2G105KRPT	1.083 in	27.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	400 V	31.5 mm	1.24 in	13 mm	0.512 "	10 %	Through Hole	160 V	PC Pins	Radial	1 µF			High Frequency Switching		22.8 mm	0.898 in
Nichicon QXP2G224KRPT	0.689 in	17.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	400 V	21 mm	0.827 "	9.2 mm	0.362 "	10 %	Through Hole	160 V	PC Pins	Radial	0.22 µF	0.669 "		High Frequency Switching		17 mm

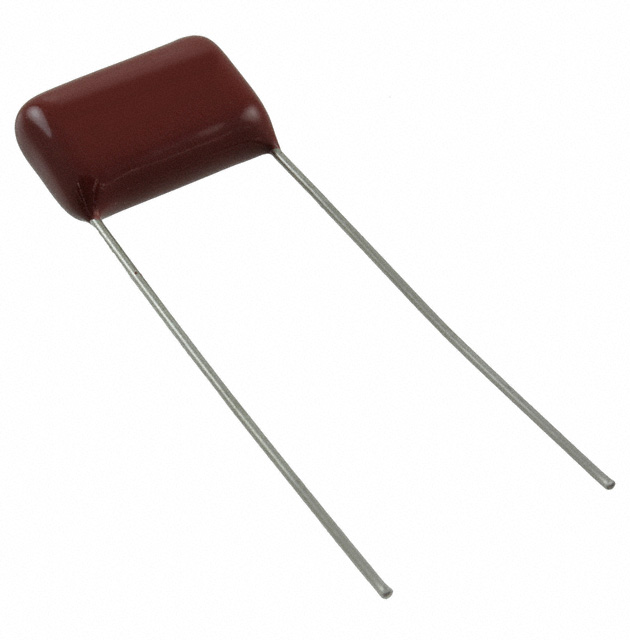

Nichicon QXP2K153KRPT		0.492 in	Polypropylene (PP) Metallized	-40 C	105 ░C	800 V	16 mm	0.63 in	7 mm	0.276 in	10 %	Through Hole	250 V	PC Pins	Radial	15000 pF	0.496 in	12.6 mm	High Frequency Switching				12.5 mm

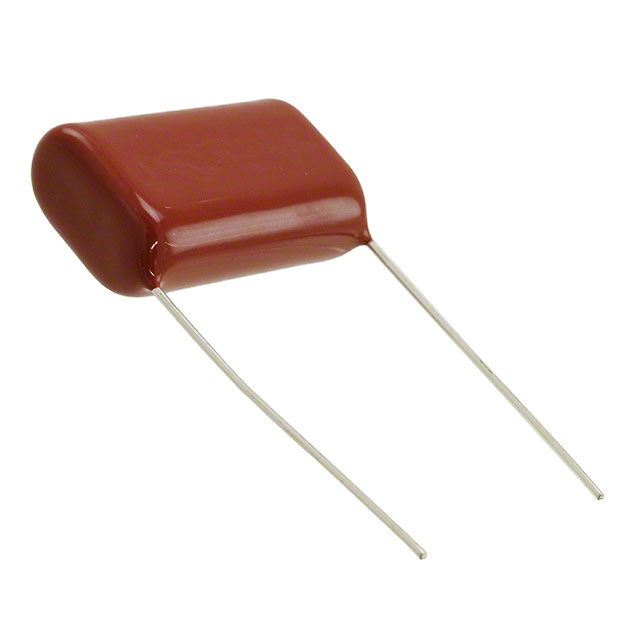

Nichicon QXP2E225KRPT	1.083 in	27.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	250 V	31.5 mm	1.24 in	12.6 mm	0.496 in	10 %	Through Hole	125 V	PC Pins	Radial	2.2 µF			High Frequency Switching		22.4 mm	0.882 "
Nichicon QXP2E225JRP7FX	1.083 in	27.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	250 V	31.5 mm	1.24 in	12.6 mm	0.496 in	5 %	Through Hole	125 V	PC Pins	Radial	2.2 µF			High Frequency Switching	26.9 mm		1.059 in
Nichicon QXP2K224KRP7FT	0.886 in	22.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	800 V	26.5 mm	1.043 in	11.5 mm	0.453 in	10 %	Through Hole	250 V	PC Pins	Radial	0.22 µF	1.016 in		High Frequency Switching	25.8 mm
Nichicon QXP2G223KRP7FL		0.492 in	Polypropylene (PP) Metallized	-40 C	105 ░C	400 V	16 mm	0.63 in	5.8 mm	0.228 in	10 %	Through Hole	160 V	PC Pins	Radial	0.022 µF	0.606 "		High Frequency Switching	15.4 mm			12.5 mm
Nichicon QXP2G474KRP7FP	0.886 in	22.5 mm	Polypropylene (PP) Metallized	-40 C	105 ░C	400 V	26.5 mm	1.043 in	10.4 mm	0.409 in	10 %	Through Hole	160 V	PC Pins	Radial	0.47 µF	0.972 "	24.7 mm	High Frequency Switching
