FS45MR12 Series
Manufacturer: INFINEON
Beta
⌘K

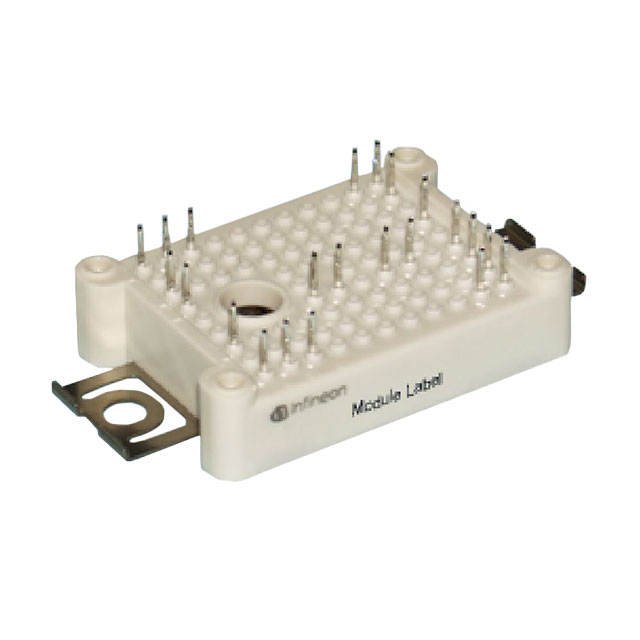

SIC 6N-CH 1200V AG-EASY1BM-2
| Part | Rds On (Max) @ Id, Vgs [Max] | Supplier Device Package | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drain to Source Voltage (Vdss) | Mounting Type | Package / Case | Configuration | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 45 mOhm | AG-EASY1BM-2 | 5.55 V | 1.2 kV | 1200 V | Chassis Mount | Module | 6 N-Channel (3-Phase Bridge) | 1840 pF | 62 nC | Silicon Carbide (SiC) | -40 °C | 150 °C | 25 A |
