OD9238 Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 38 MM, BALL BEARING, 100 CFM

Part	Air Flow	Power (Watts)	Fan Type	Static Pressure	Approval Agency	Termination Leads Count	Termination Type	Termination	Width	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Bearing Type	Weight	Noise	Voltage - Rated	RPM	Voltage Range (Max)	Voltage Range (Min)	Lifetime	Material - Frame	Current Rating	Material - Blade	Features
ORION FANS OD9238-24HB	90 CFM	13.2 W	Tubeaxial	0.4 in H2O	cURus TUV	2 leads	Wire Leads	2 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball	0.463 lb	50 dB	24 VAC	4000 RPM	26.4 VDC	17 VDC	70000 Hrs	Polybutylene Terephthalate (PBT)	0.28 A	PBT Polybutylene Terephthalate
ORION FANS OD9238-24MBVXC10A	118 CFM	11 W	Tubeaxial	0.59 in H2O	cURus TUV	4 leads	Wire Leads	4 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		55 dB	24 VAC	4800 RPM			50000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.5 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Auto Restart PWM Control Speed Sensor (Tach)
ORION FANS OD9238-48MB-VXC01A	118 CFM	12 W	Tubeaxial	0.59 in H2O	cURus TUV	3	Wire Leads	3 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		55 dB	48 VDC	4800 RPM			50000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.3 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Auto Restart Speed Sensor (Tach)
ORION FANS OD9238-24HBVXC02A	135 CFM	15.6 W	Tubeaxial	0.74 in H2O	CE cURus TUV UR	3	Wire Leads	3 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		58.5 dB	24 VAC	5400 RPM			75000 Hrs	Polybutylene Terephthalate (PBT)	650 mA	PBT Polybutylene Terephthalate	Auto Restart Locked Rotor Sensor
ORION FANS OD9238-12HHB-VXC10A	112 CFM	22 W	Tubeaxial	1.1 in H2O	cURus TUV	4 leads	Wire Leads	4 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		60 dB	12 VAC	7100 RPM			50000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	1.9 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Auto Restart PWM Control Speed Sensor (Tach)

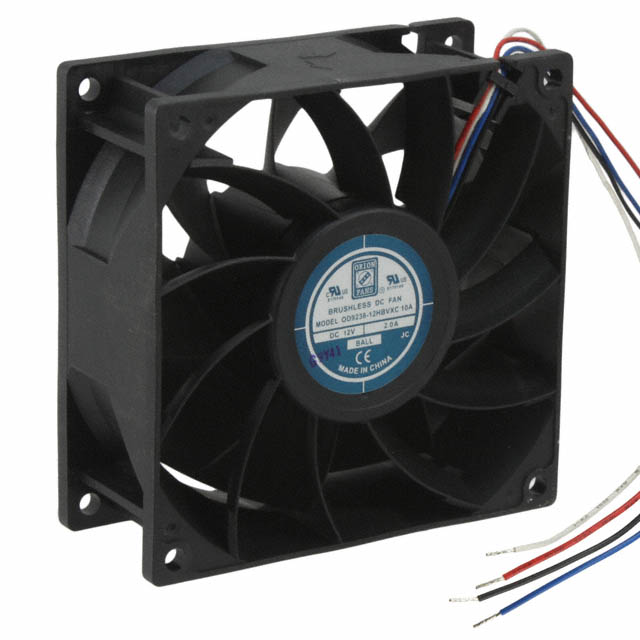

ORION FANS OD9238-12HBVXC10A	135 CFM	16 W	Tubeaxial	0.74 in H2O	cURus TUV	4 leads	Wire Leads	4 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		58 dB	12 VAC	5400 RPM			50000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	1.3 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Auto Restart PWM Control Speed Sensor (Tach)
ORION FANS OD9238-48HBVXC01A	125 CFM	16.8 W	Tubeaxial	0.75 in H2O	CE cURus TUV UR	3	Wire Leads	3 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball		61.2 dB	48 VDC	5400 RPM			75000 Hrs	Polybutylene Terephthalate (PBT)	0.35 A	PBT Polybutylene Terephthalate	Auto Restart Speed Sensor (Tach)
ORION FANS OD9238-48LB	78 CFM	7.2 W	Tubeaxial	0.42 in H2O	CE cURus TUV UR	2 leads	Wire Leads	2 Wire Leads	38 mm	92 mm	Square	92 mm	149 °F	-4 °F	Ball		50.2 dB	48 VDC	3500 RPM							Auto Restart
ORION FANS OD9238-24MB	89 CFM	7.2 W	Tubeaxial	0.55 in H2O	CE cURus TUV UR	2 leads	Wire Leads	2 Wire Leads	38 mm	92 mm	Square	92 mm	149 °F	-4 °F	Ball		53.7 dB	24 VAC	4000 RPM							Auto Restart
ORION FANS OD9238-24HB02A	90 CFM	13.2 W	Tubeaxial	0.4 in H2O	cURus TUV	3	Wire Leads	3 Wire Leads	38 mm	92.5 mm	Square	92.5 mm	158 °F	14 °F	Ball	0.463 lb	50 dB	24 VAC	4000 RPM	26.4 VDC	17 VDC	70000 Hrs	Polybutylene Terephthalate (PBT)	0.28 A	PBT Polybutylene Terephthalate	Locked Rotor Sensor
