ADP2380 Series

20 V, 4 A synchronous Step-Down Regulator with Low-Side Driver

Catalog

20 V, 4 A synchronous Step-Down Regulator with Low-Side Driver

Part	Utilized IC / Part	Current - Output	Supplied Contents	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Board Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Mounting Type	Output Configuration	Synchronous Rectifier	Supplier Device Package	Voltage - Input (Min) [Min]	Number of Outputs	Topology	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Package / Case [custom]	Package / Case	Package / Case [custom]	Function	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]

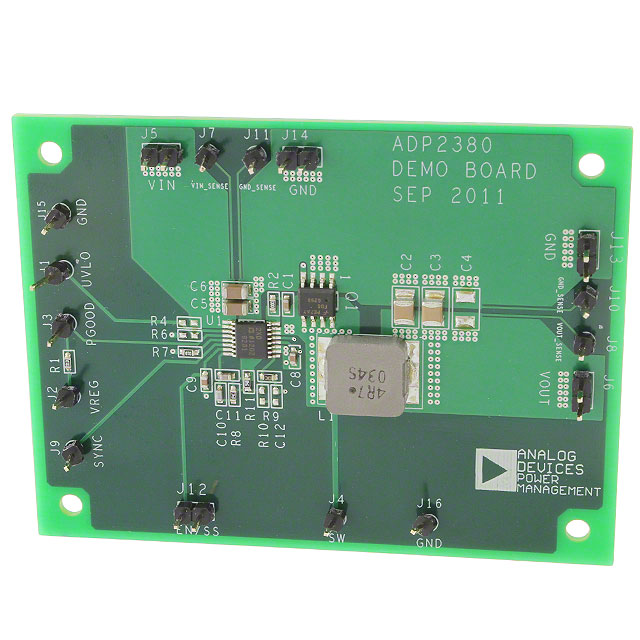

Analog Devices ADP2380-EVALZ	ADP2380	4 A	Board(s)	DC/DC Step Down	4.5 V	20 V	500 kHz	Non-Isolated	1	3.3 V	Buck	Fully Populated
Analog Devices ADP2380AREZ		4 A											1.4 MHz	250 kHz	Adjustable	Surface Mount	Positive		16-TSSOP-EP	4.5 V	1	Buck	0.6 V	20 V	0.173 "	16-TSSOP Exposed Pad	4.4 mm	Step-Down	18 V	-40 °C	125 ¯C

Catalog

20 V, 4 A synchronous Step-Down Regulator with Low-Side Driver

Key Features

• Input voltage: 4.5 V to 20 V

• Integrated 44 mΩ high-side MOSFET

• 0.6 V ± 1% reference voltage over temperature

• Continuous output current: 4 A

• Programmable switching frequency: 250 kHz to 1.4 MHz

• Synchronizes to external clock: 250 kHz to 1.4 MHz

• 180° out-of-phase synchronization

• Programmable UVLO

• Power-good output

• External compensation

• Internal soft start with external adjustable option

• Startup into a precharged output

• Supported by ADIsimPower design tool

Description
