Ferrite Cable Cores FT,NIZN,PC
Ferrite Cable Cores FT,NIZN,PC
| Part | Core Type | Inductance Factor (Al) | Finish | Effective Area (Ae) mm² | Effective Length (le) mm [custom] | Diameter [diameter] | Diameter [diameter] | Initial Permeability (µi) | Gap | Core Factor (ΣI/A) mm⁻¹ | Tolerance | Effective Magnetic Volume (Ve) mm³ | Height | Height | Material | Effective Length (le) mm | Effective Area (Ae) mm² [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

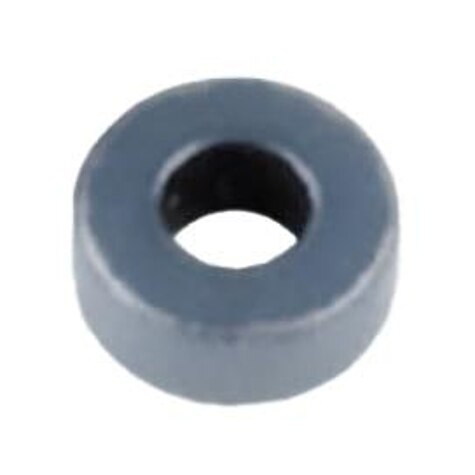

 Laird Technologies EMI | Toroid | 25 nH | Parylene | 1.214 mm² | 7.619 mm | 3.43 mm | 0.135 in | 125 | Ungapped | 6.277 mm⁻¹ | 30 % | 9.248 mm³ | 1.52 mm | 0.06 in | 25 | ||
 Laird Technologies EMI | Toroid | 18 nH | Parylene | 3.94 mm | 0.155 in | 125 | Ungapped | 8.74 mm⁻¹ | 30 % | 1.27 mm | 0.05 " | 25 | 9.196 mm | 1.052 mm² |
