VND05 Series
Manufacturer: STMicroelectronics
Beta
⌘K
IC PWR DRIVER N-CHAN 1:1 PWRSO10
| Part | Rds On (Typ) [Max] | Supplier Device Package | Voltage - Supply (Vcc/Vdd) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Output Type | Output Configuration | Ratio - Input:Output | Mounting Type | Switch Type | Package / Case | Interface | Voltage - Load [Min] | Voltage - Load [Max] | Input Type | Number of Outputs | Current - Output (Max) [Max] | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 200 mOhm | 10-PowerSO | Not Required | -40 °C | 150 °C | Status Flag | N-Channel | High Side | 1:1 | Surface Mount | General Purpose | PowerSO-10 Exposed Bottom Pad | On/Off | 6 V | 26 V | Non-Inverting | 2 | 1.6 A | Open Load Detect Over Temperature |

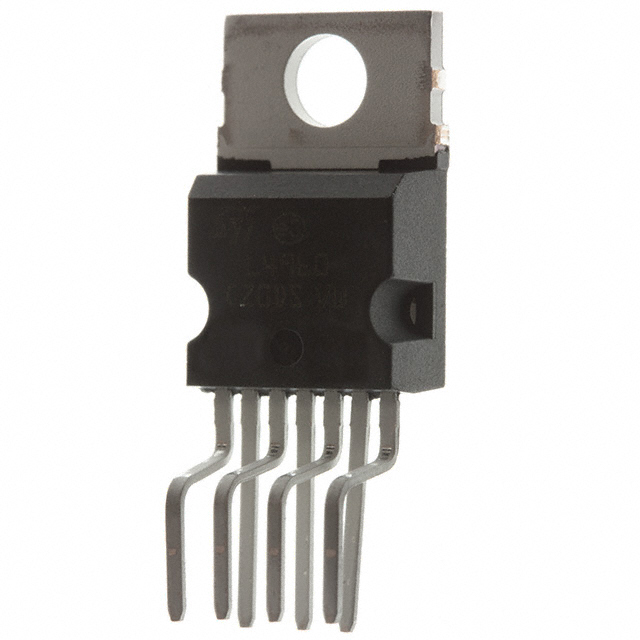

 STMicroelectronics | 200 mOhm | 7-HEPTAWATT | Not Required | -40 °C | 150 °C | Status Flag | N-Channel | High Side | 1:1 | Through Hole | General Purpose | Heptawatt-7 (Vertical Bent and Staggered Leads) | On/Off | 6 V | 26 V | Non-Inverting | 2 | 1.6 A | Open Load Detect Over Temperature |
