663-015 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

663 SERIES RIGHT ANGLE DUAL D-SU

...

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Type	Termination	Shell Material, Finish	Number of Rows [custom]	Number of Positions	Number of Positions	Material Flammability Rating	Mounting Type	Flange Feature	Features	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Finish Thickness	Flange Feature

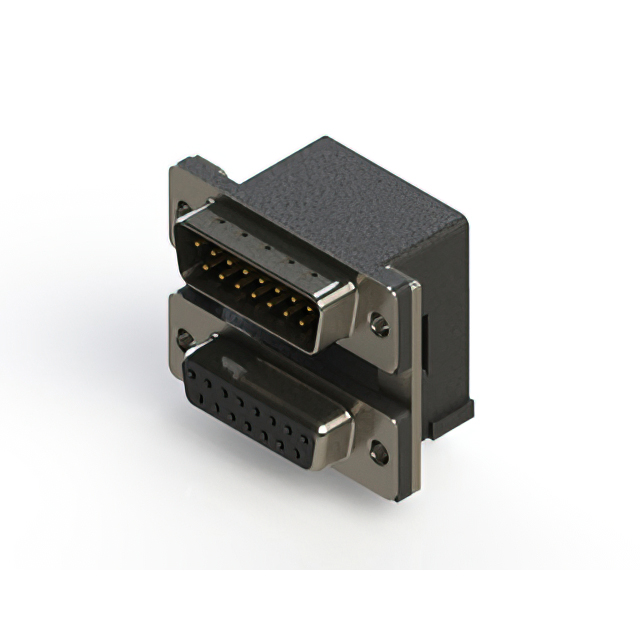

EDAC Inc. 663-015-364-007	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell (Unthreaded)	Grounding Indents Shielded	3 A	0.38 µm	15 µin	Gold

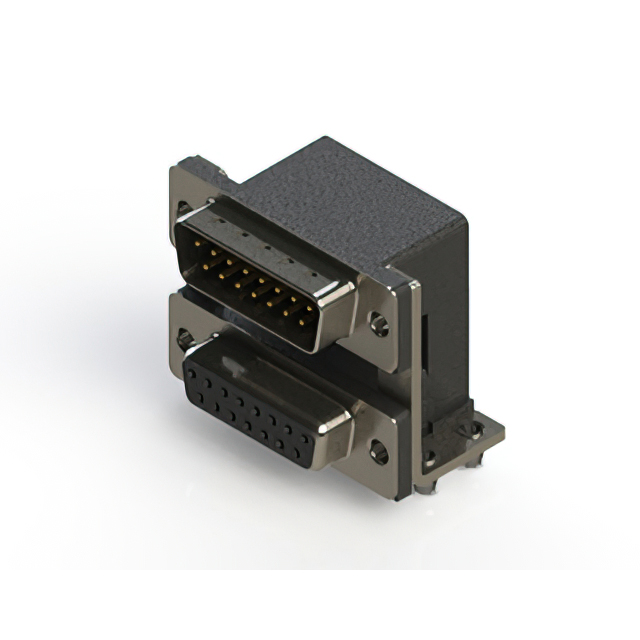

EDAC Inc. 663-015-364-047	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell (Unthreaded)	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	0.38 µm	15 µin	Gold
EDAC Inc. 663-015-664-00A	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell (M3)	Grounding Indents Shielded	3 A	0.76 Ám	30 Áin	Gold

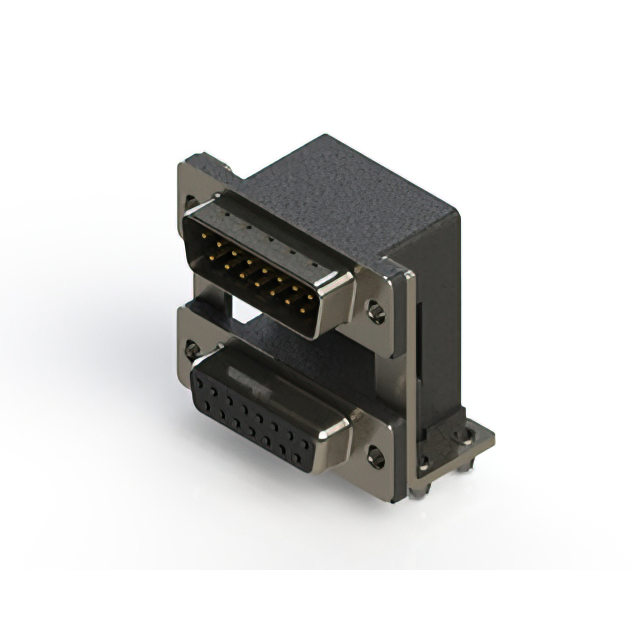

EDAC Inc. 663-015-364-040	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell (Unthreaded)	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	0.38 µm	15 µin	Gold

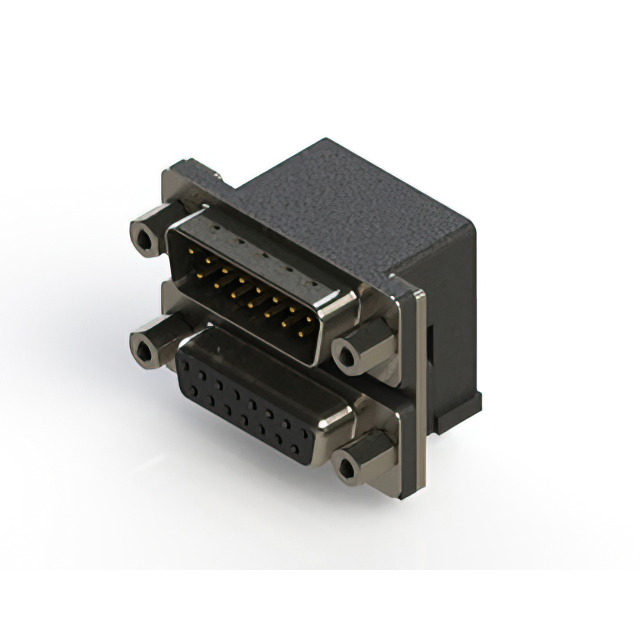

EDAC Inc. 663-015-264-003	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	4-40 Mating Side Female Screwlock	Grounding Indents Shielded	3 A			Gold	Flash

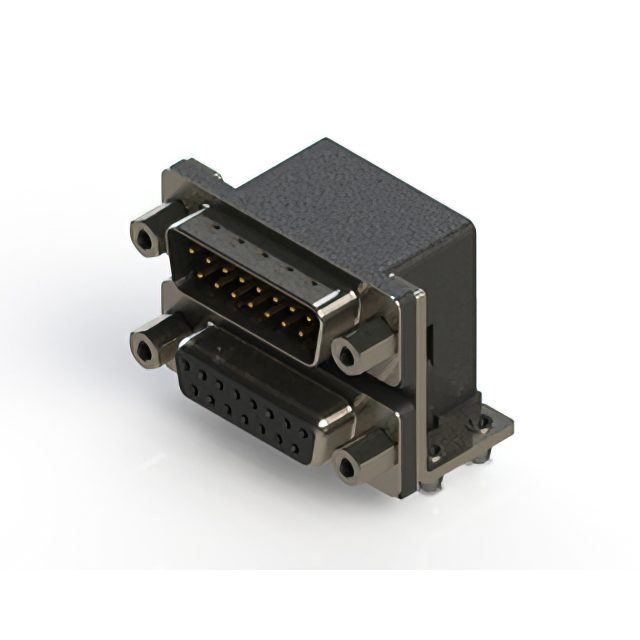

EDAC Inc. 663-015-664-043	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	4-40 Mating Side Female Screwlock	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	0.76 Ám	30 Áin	Gold

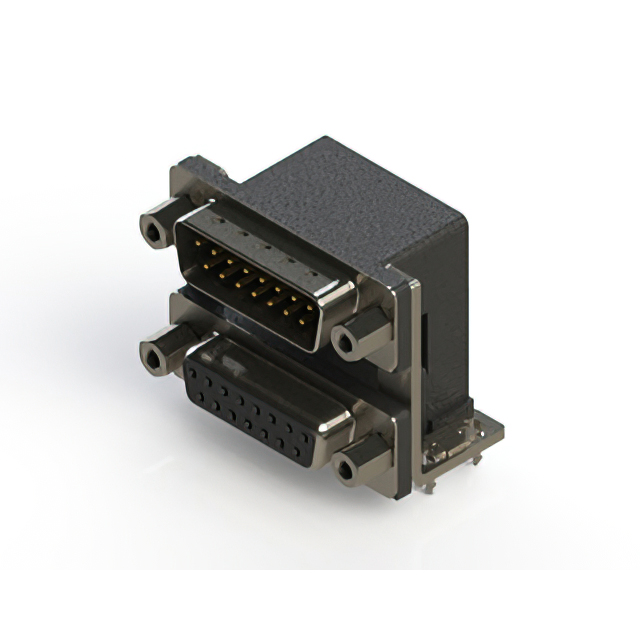

EDAC Inc. 663-015-264-036	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	4-40 Mating Side Female Screwlock	Board Lock Grounding Indents Mounting Brackets Shielded	3 A			Gold	Flash

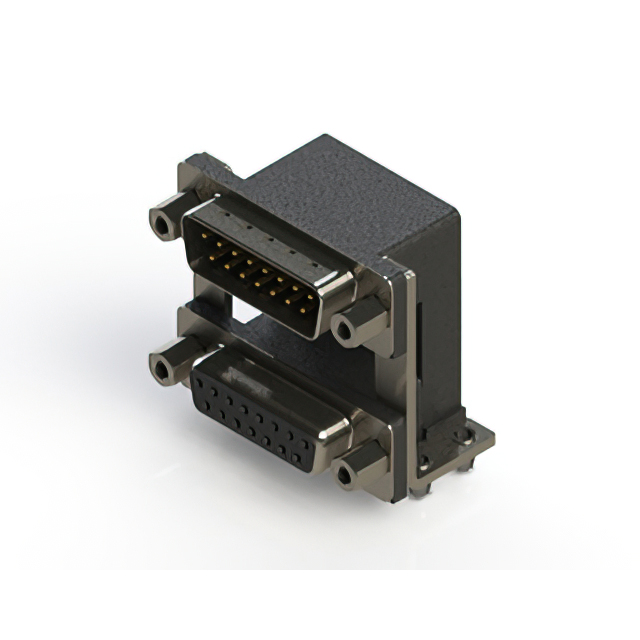

EDAC Inc. 663-015-364-049	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	4-40 Mating Side Female Screwlock	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	0.38 µm	15 µin	Gold
EDAC Inc. 663-015-364-035	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	0.38 µm	15 µin	Gold		4-40

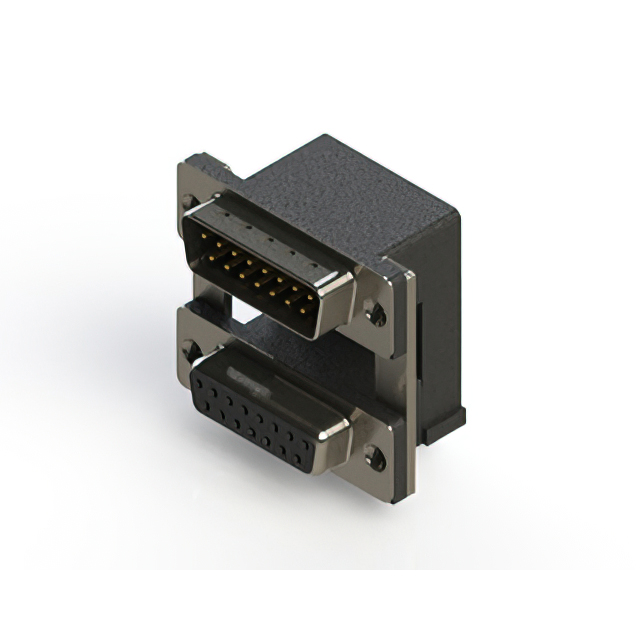

EDAC Inc. 663-015-364-008	Polyester Thermoplastic	Brass Phosphor Bronze	-55 C	85 °C	Black	D-Sub - Stacked	8.08 mm	0.318 "	2	2	Plug Male Pins Receptacle Female Sockets	Signal	Solder	Nickel Plated Steel	2	15	15	UL94 V-0	Right Angle Through Hole	Housing/Shell	Grounding Indents Shielded	3 A	0.38 µm	15 µin	Gold		4-40
