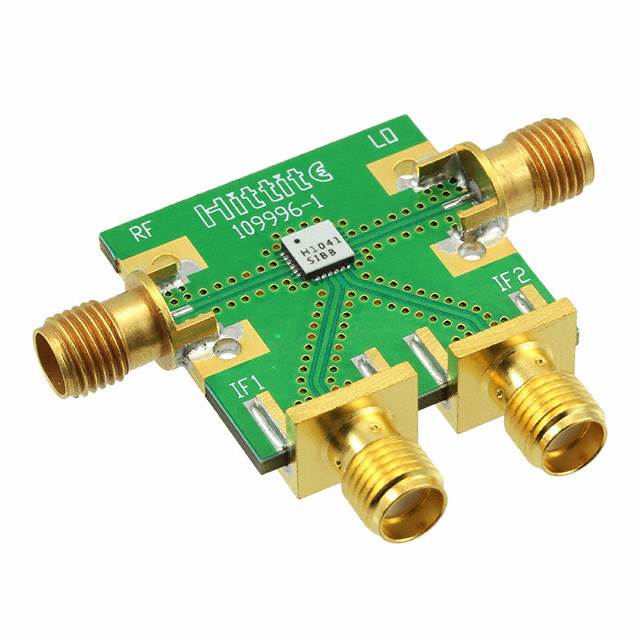

GaAs MMIC I/Q Mixer SMT, 17 - 27 GHz
Key Features
• Wide IF Bandwidth: DC - 3.5 GHz
• Image Rejection: 36 dB
• LO to RF Isolation: 45 dB
• High Input IP3: +20 dBm
• 24 Lead Ceramic 4x4
• SMT Package: 16mm²
Description
AI
The HMC1041LC4 is a compact I/Q MMIC mixer in a leadless "Pb free" SMT package, which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MES FET process. A low frequency quadrature hybrid was used to produce a 1000 MHz USB IF output. This product is a much smaller alternative to hybrid style Image Reject Mixers and Single Sideband Upconverter assemblies. The HMC1041LC4 eliminates the need for wire bonding and allows the use of surface mount manufacturing techniques.ApplicationsPoint-to-Point RadioPoint-to-Multi-Point RadioTest Equipment & SensorsMilitary End Use
