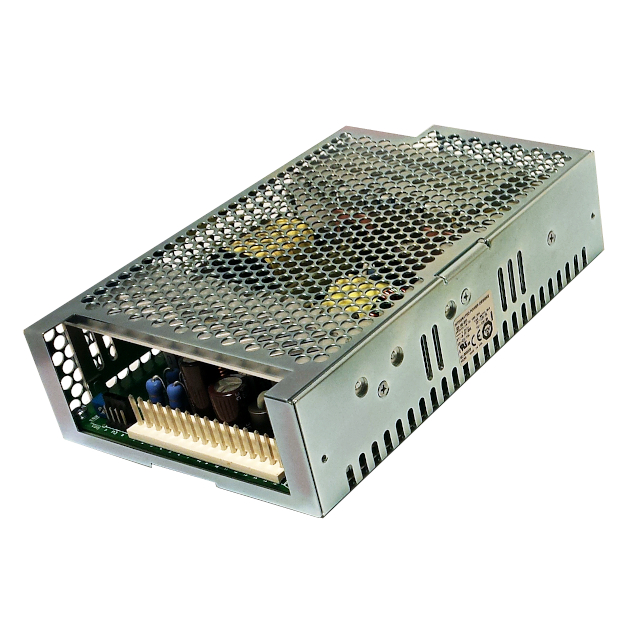

1010758 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
DC/DC CONVERTER +/-12V 185W
| Part | Approval Agency | Efficiency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output (Max) | Voltage - Output 1 | Power (Watts) | Voltage - Input (Max) [Max] | Type | Voltage - Output 2 | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Standard Number | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | CE cURus TUV UKCA | 84 % | Chassis Mount | 70 °C | 0 °C | 2 | 6 A 10 A | 12 V | 185 W | 36 V | Enclosed | -12 V | 18 V | 4.36 in | 183.6 mm | 44.2 mm | 1.74 " | 110.7 mm | 7.23 in | 60601-1; 62368-1 | ITE (Commercial) Medical |
