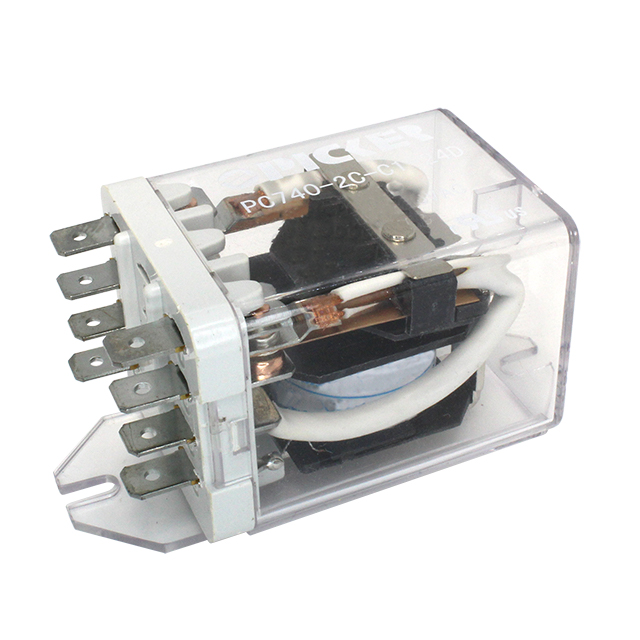

PC740-2C Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE DPDT 40A 120V
| Part | Coil Resistance | Contact Form | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Approval Agency | Relay Type | Contact Rating (Current) | Coil Type | Operate Time | Coil Insulation | Must Operate Voltage | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Coil Voltage | Release Time | Coil Current | Quick Connect Size (0.250") | Termination Style | Mounting Type | Must Release Voltage | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

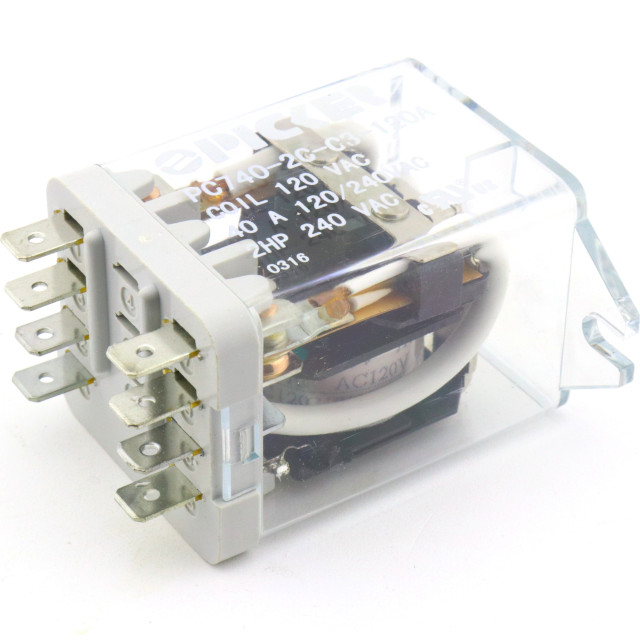

 Picker Components | 706 Ohms | 2 2 Form C C DPDT Form | 250 VAC | 28 VDC | cUL cURus UL | General Purpose | 40 A | Non Latching | 25 ms | Class B | 88 V | Silver Cadmium Oxide (AgCdO) | -55 °C | 70 °C | 120 V | 15 ms | 170 mA | 0.25 in | Quick Connect | Chassis Mount | 33 VAC | 10000 VA | 1120 W |
 Picker Components | 58 Ohms | 2 2 Form C C DPDT Form | 250 VAC | 28 VDC | cUL cURus UL | General Purpose | 40 A | Non Latching | 25 ms | Class B | 9.6 VDC | Silver Cadmium Oxide (AgCdO) | -55 °C | 70 °C | 12 VAC | 15 ms | 206.9 mA | 0.25 in | Quick Connect | Chassis Mount | 1 VDC | 10000 VA | 1120 W |
